Pilz PMC Series - Motor Connection with Brake (X9)

9 Interfaces
Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 47

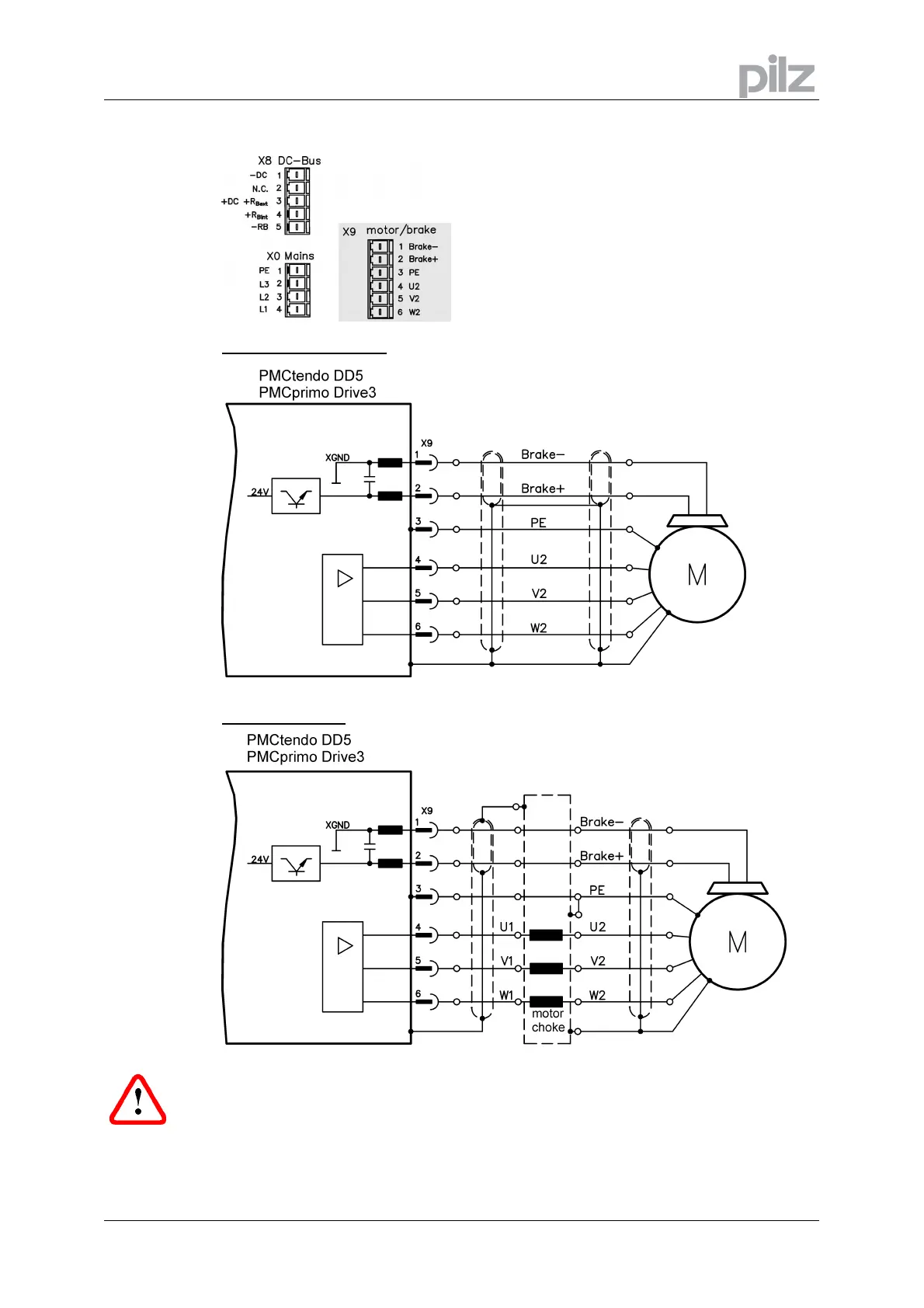

9.4 Motor connection with brake (X9)
Cable length
≤ 25 meters
Cable length >25m
For cable lengths above 25m up to max. 50m, a motor choke
must be wired into the motor cable, close to the amplifier.
