9 Interfaces
Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 53

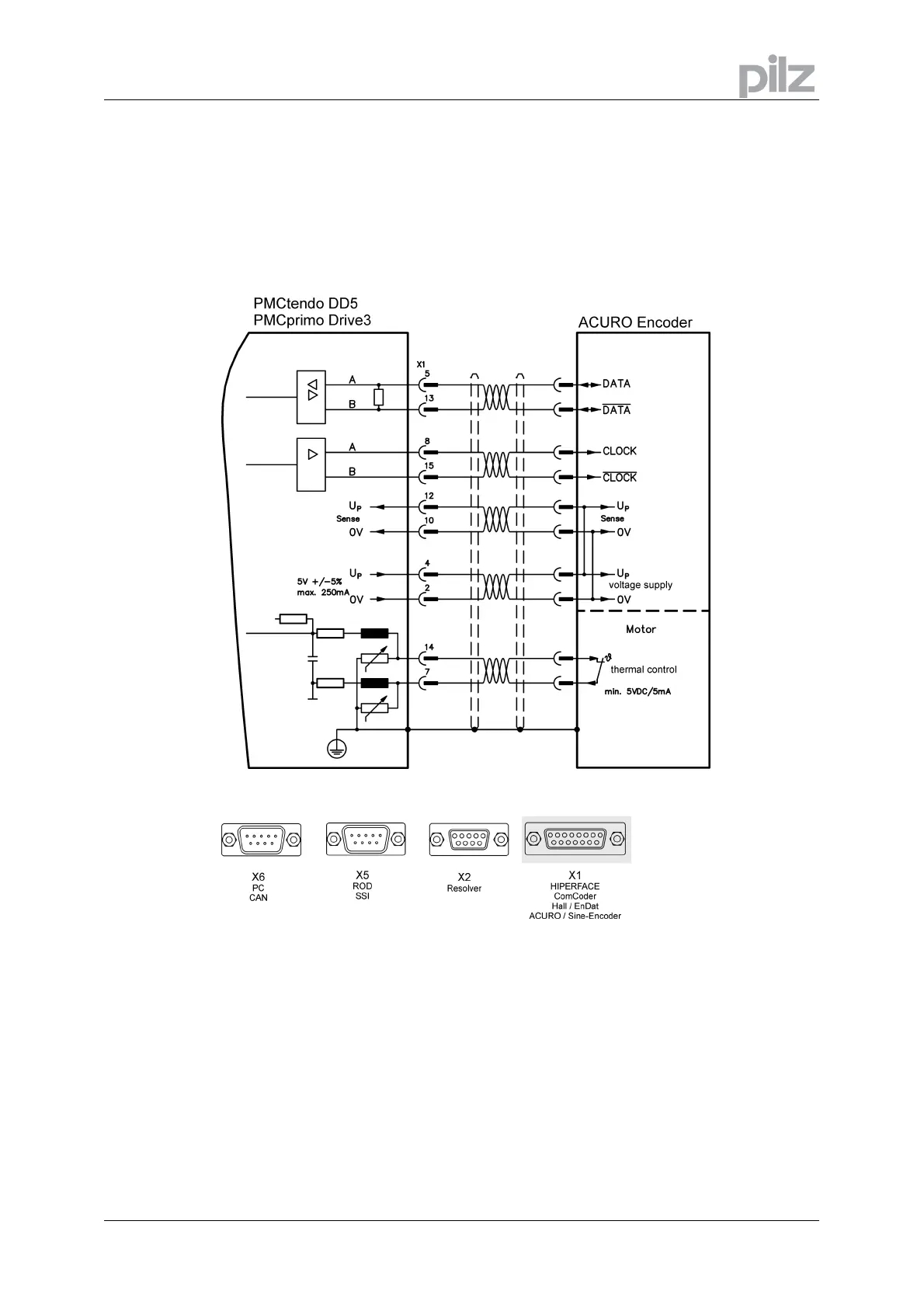

9.6.5 Acuro Encoder, BISS Interface (X1)
As an option, our servomotors can be fitted with a single-turn or multi-turn ACURO encoder with
BISS interface.
The encoder is used by the as a feedback device for drive tasks that require highly precise
positioning or extremely smooth running.
The thermostat contact in the motor is connected via the encoder cable to X1 and evaluated
there.
If lead lengths of more than 50m are planned, please consult our customer service.
