11 Expansions and Accessories
Page 106 Installation manual for PMCtendo DD5/PMCprimo Drive3
11.1.3 Expansion card -PROFIBUS-
This section describes the PROFIBUS expansion card for the .
Information on the range of functions and the software protocol can be found in our manual
“Communication Profile PROFIBUS DP”.
The PROFIBUS expansion card has two 9-pin SubD sockets wired in parallel.
The supply voltage for the expansion card is provided by the servo amplifier.

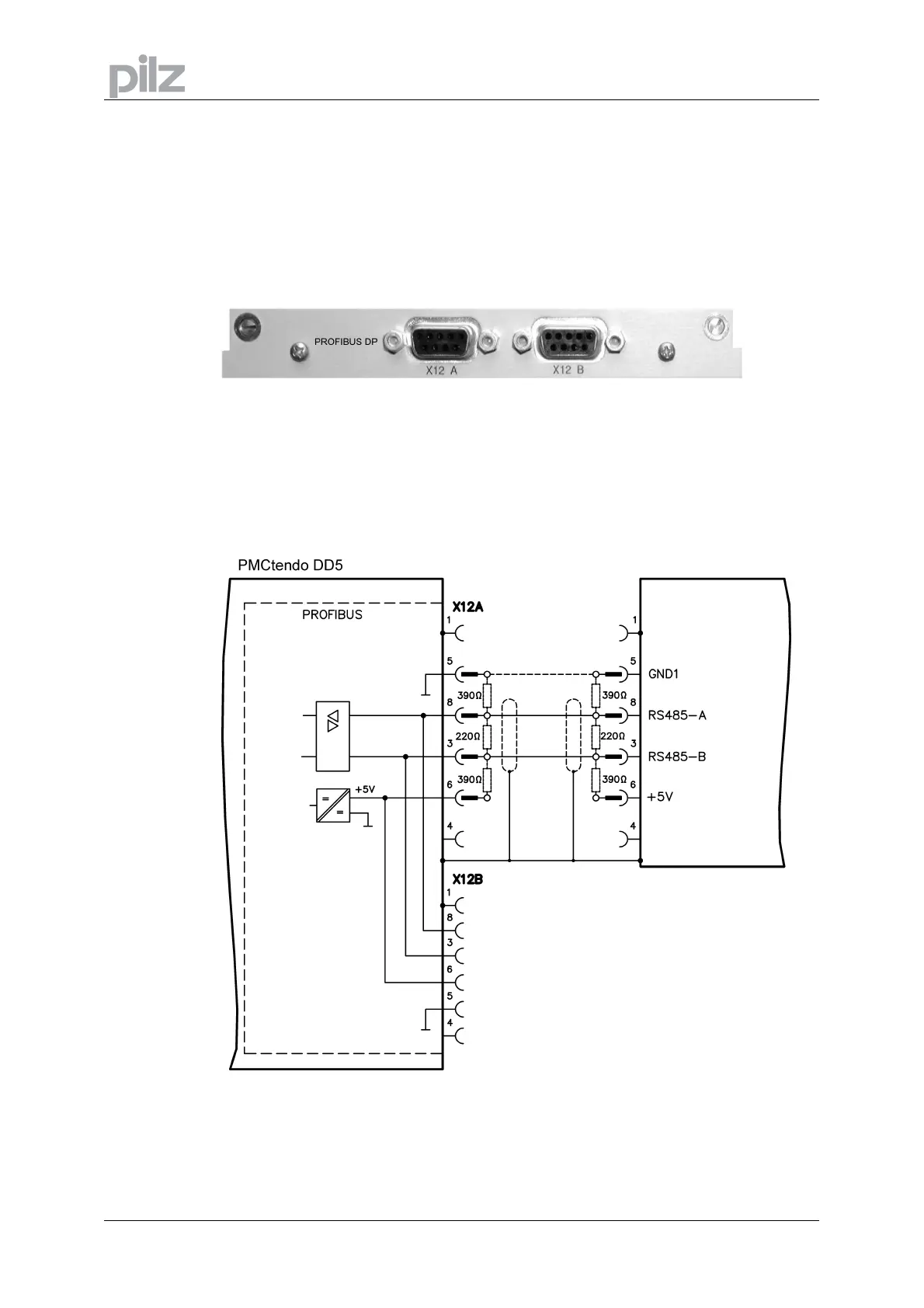

11.1.3.1 Front view
11.1.3.2 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmission times
are all described in the “Installation Guidelines for PROFIBUS-DP/FMS” from PNO, the
PROFIBUS User Organization.
11.1.3.3 Connection diagram
