9 Interfaces

Page 40 Installation manual for PMCtendo DD5/PMCprimo Drive3

9 Interfaces

All the important interfaces are presented in this chapter. The precise position of the connectors

and terminals can be seen on page 34. The block diagram below just provides an overview.

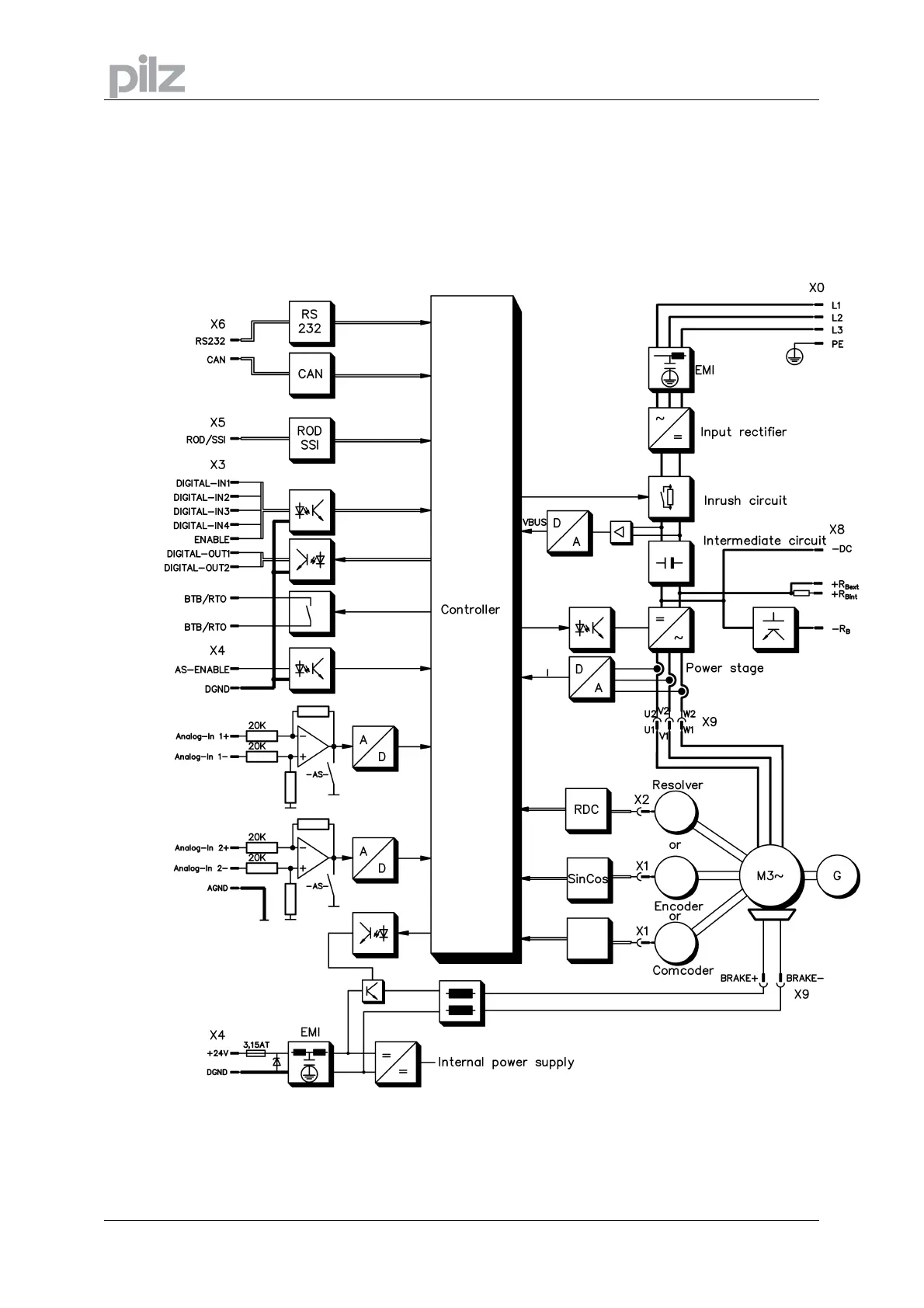

9.1 Block diagram general
