8.4.5 Notes on connection technology
8.4.5.1 Shielding connection to the front panel
Remove the outside shroud of the cable and the
shielding braid on the desired core length.
Secure the cores with a cable tie.
Remove the outside shroud of the line on a
length from for instance 30mm without damaging
the shielding braid.

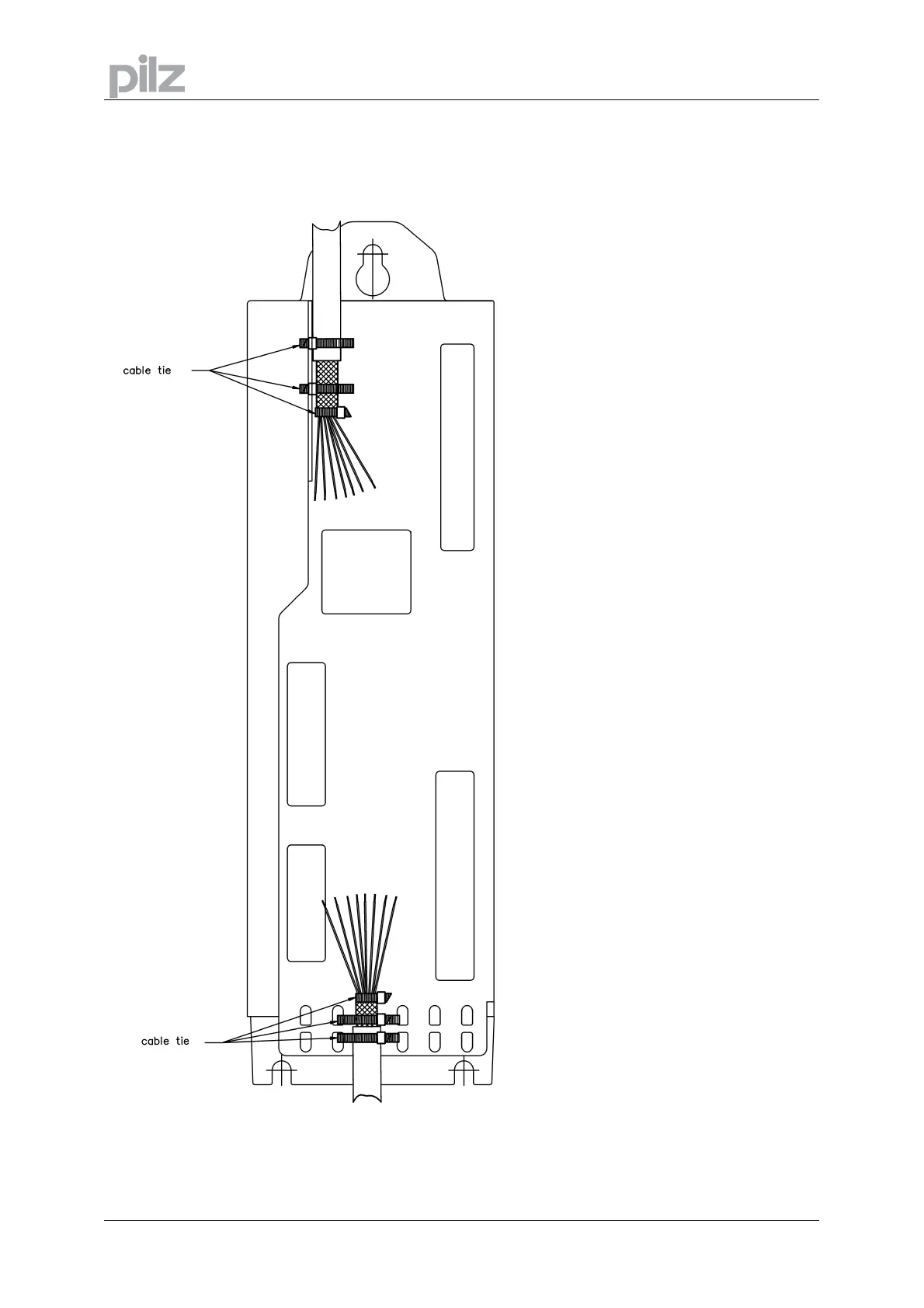

Pull a cable tie by the slot in the shielding rail on
the front panel of the servo amplifier.
Press the shielding of the cable firmly against the
front panel with the cable tie.
