9 Interfaces
Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 77

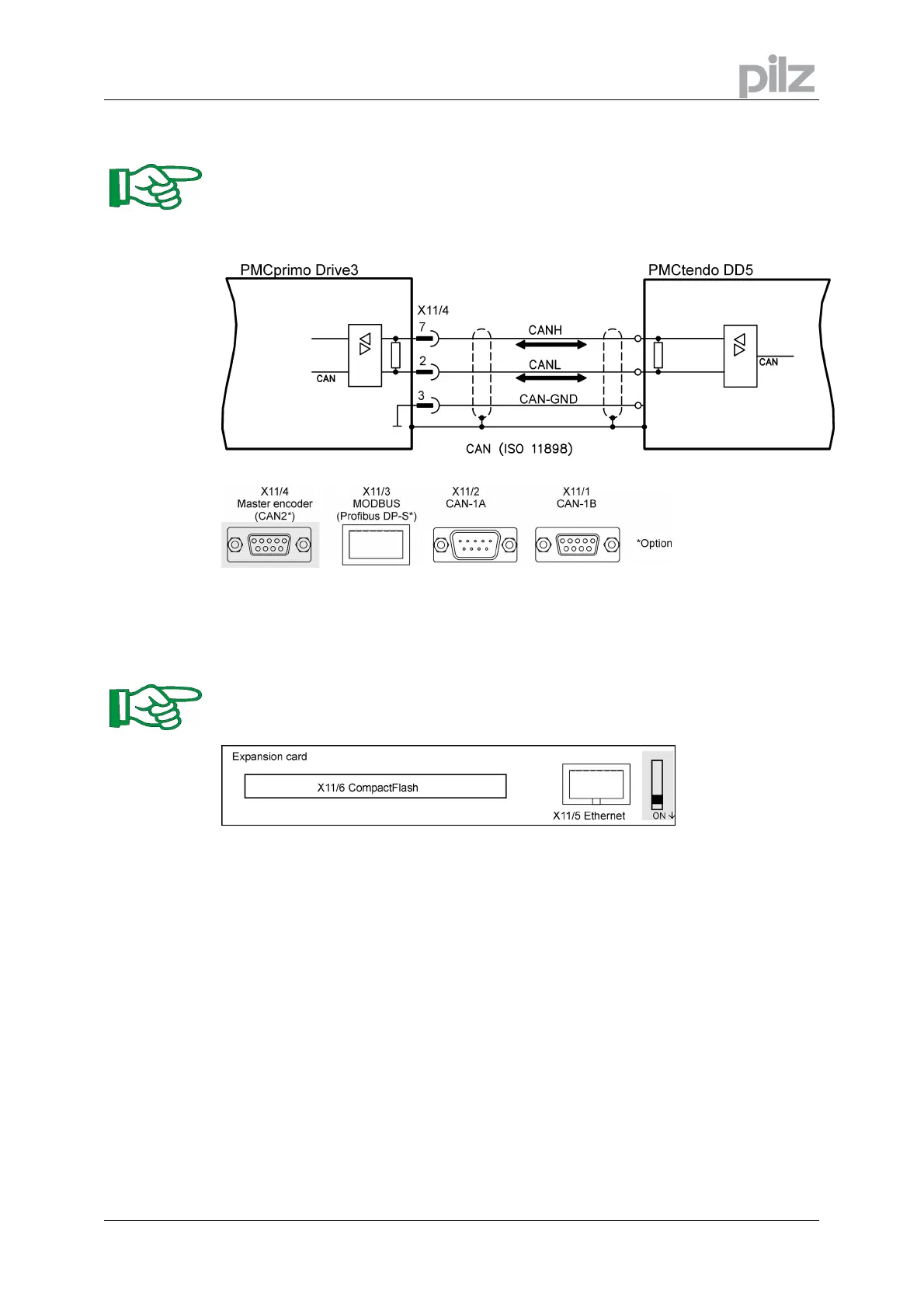

9.14 CAN bus Interface (X11/4)
These interface is available only at a PMCprimo Drive3 with option -expansion card!
The connector X11/4 can be used with the option –expansion card (see p. 109) as a second
CAN interface (CAN-2). The master encoder input X11/4 is diabled. This is done by changing
the hardware settings (jumper). See page 109 for more information.
With the second CAN-2 interface up to 8 PMCtendo DD5 servo ampilfier can be linked with
one PMCprimo Drive3.
Much more examples and notes can be found on the manual „PMCprimo CAN network“ on the
enclosed CD-ROM.
Note:
The termination (120
Ω) for CAN-2 is activated with a DIP-switch (“ON”).
