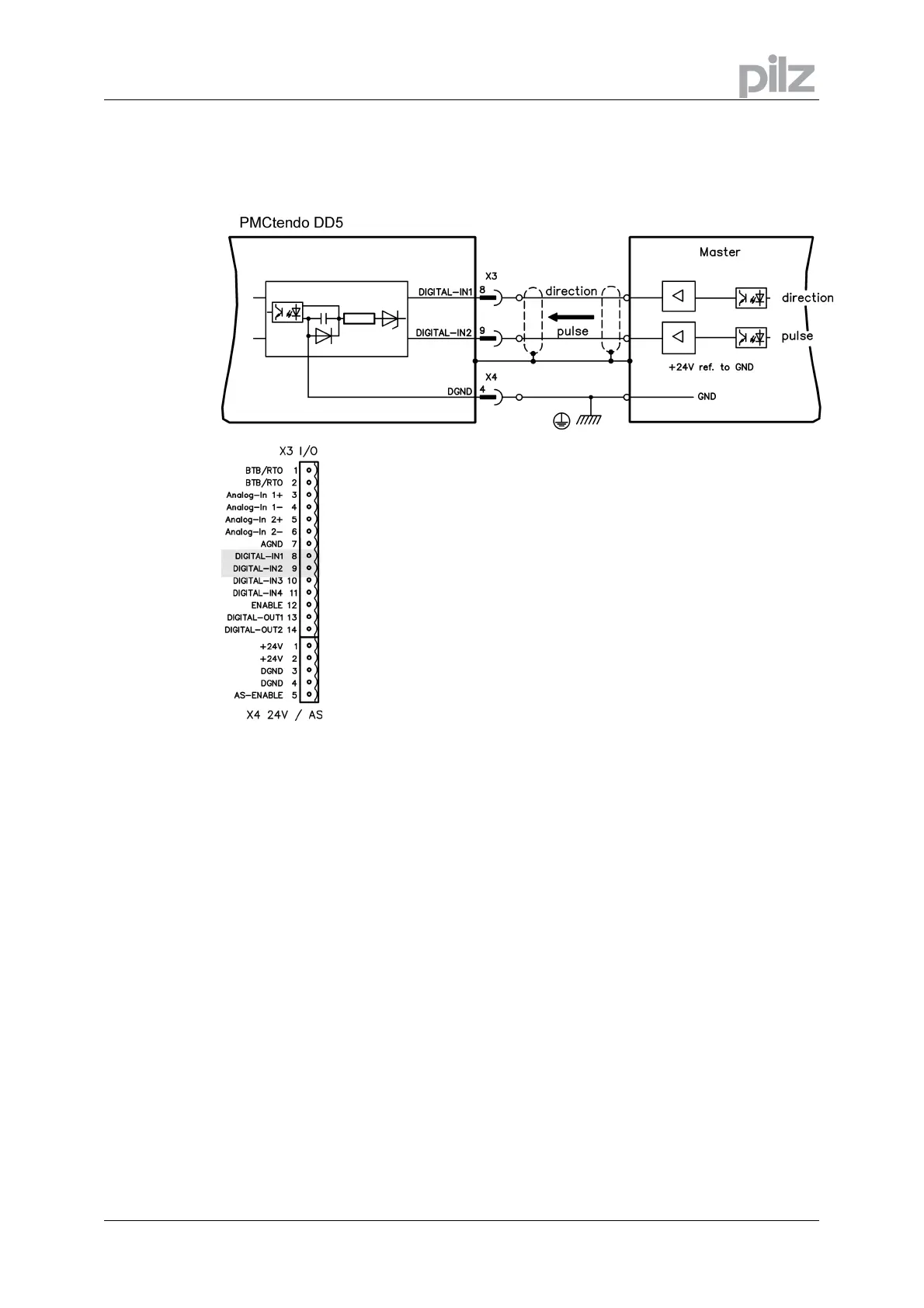

9.10.3 Connection to a stepper controller with 24V signal level (X3)
This interface can be used to connect the servo amplifier to a stepper-motor controller with a
24V signal level. It uses the digital inputs DIGITAL-IN 1 and 2 on connector X3.
Frequency limit: 100 kHz
