10 Setup
Page 96 Installation manual for PMCtendo DD5/PMCprimo Drive3
10.4.3 Keypad operation PMCprimo Drive3
The key operation for PMCprimo Drive3 is like the key operation for PMCtendo DD5. This
means that the two keys are used in the same way and also the menus are named similarly.

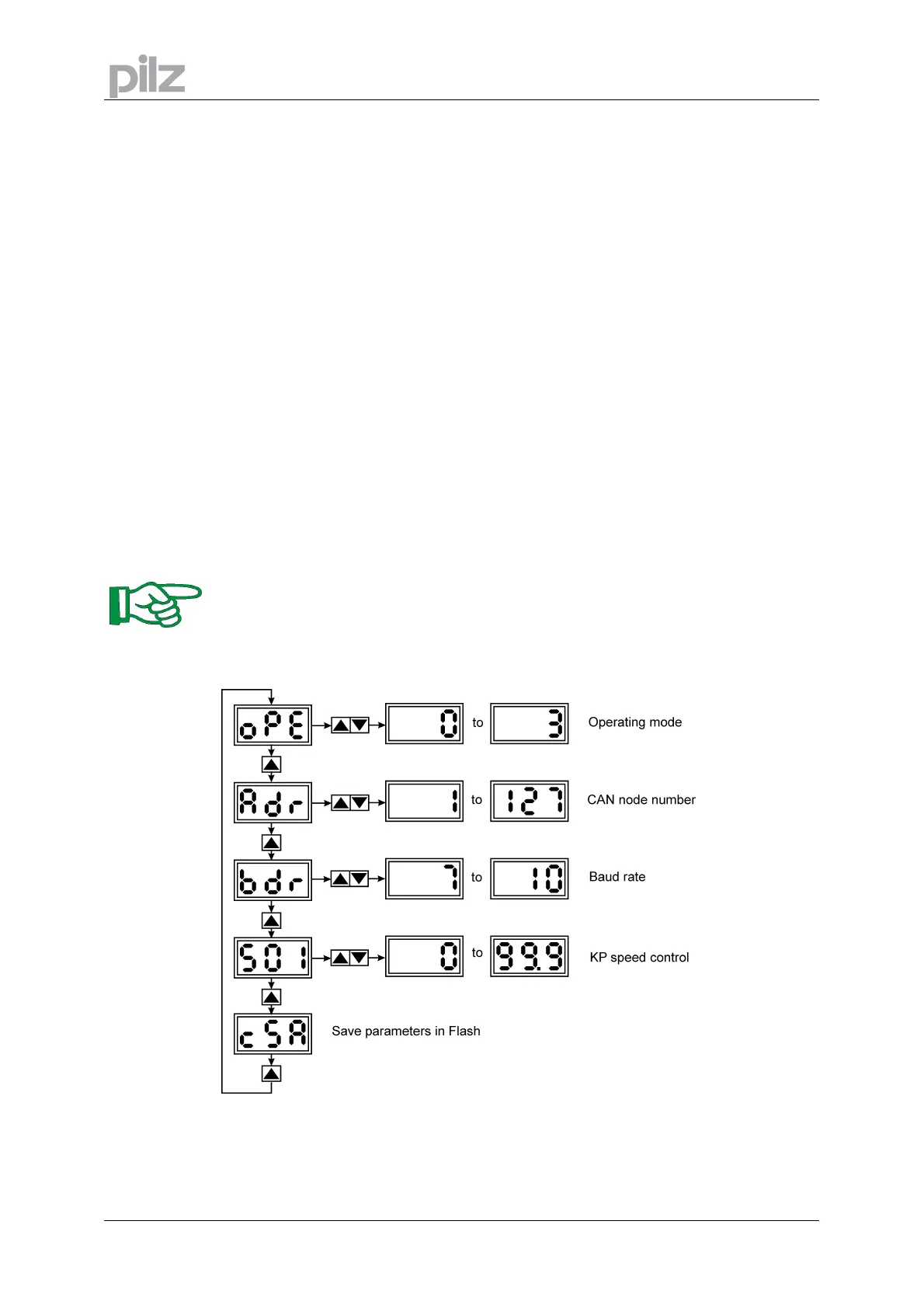

10.4.4 Basic key operation
For accessing the menu press the right key while switching on the 24 V power supply. Then this
parameters can be set with the menu:
• The operating mode
(0: Standalone, 2 Node and 3 Host+Node)
When changing the operate mode between 2 and 3 then the application program in the flash
memory is not erased. The memory is even not erased if mode 0 is selected by a mistake.
• The CAN node number depending from the operating mode:
Standalone: from 1 to 127
Node: from 1 to 60
Host+Node: Not available because node number is fixed
• The CAN Baud rate.
Except for code 6 (333kBit/s) and code 8 (666kBit/s) all baud rates for PMCtendo DD5 (see
table page 93) are supported.
• The proportional Gain Kp (GV command) for the velocity loop of the drive
• Save parameters.
After changing the parameter and returning from the function the changed parameter
have to be saved with the menu for saving. Then the system has to be switched off and
on to enable the changed settings.
