7 General

Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 17

7.5 Connection to various electrical supply networks

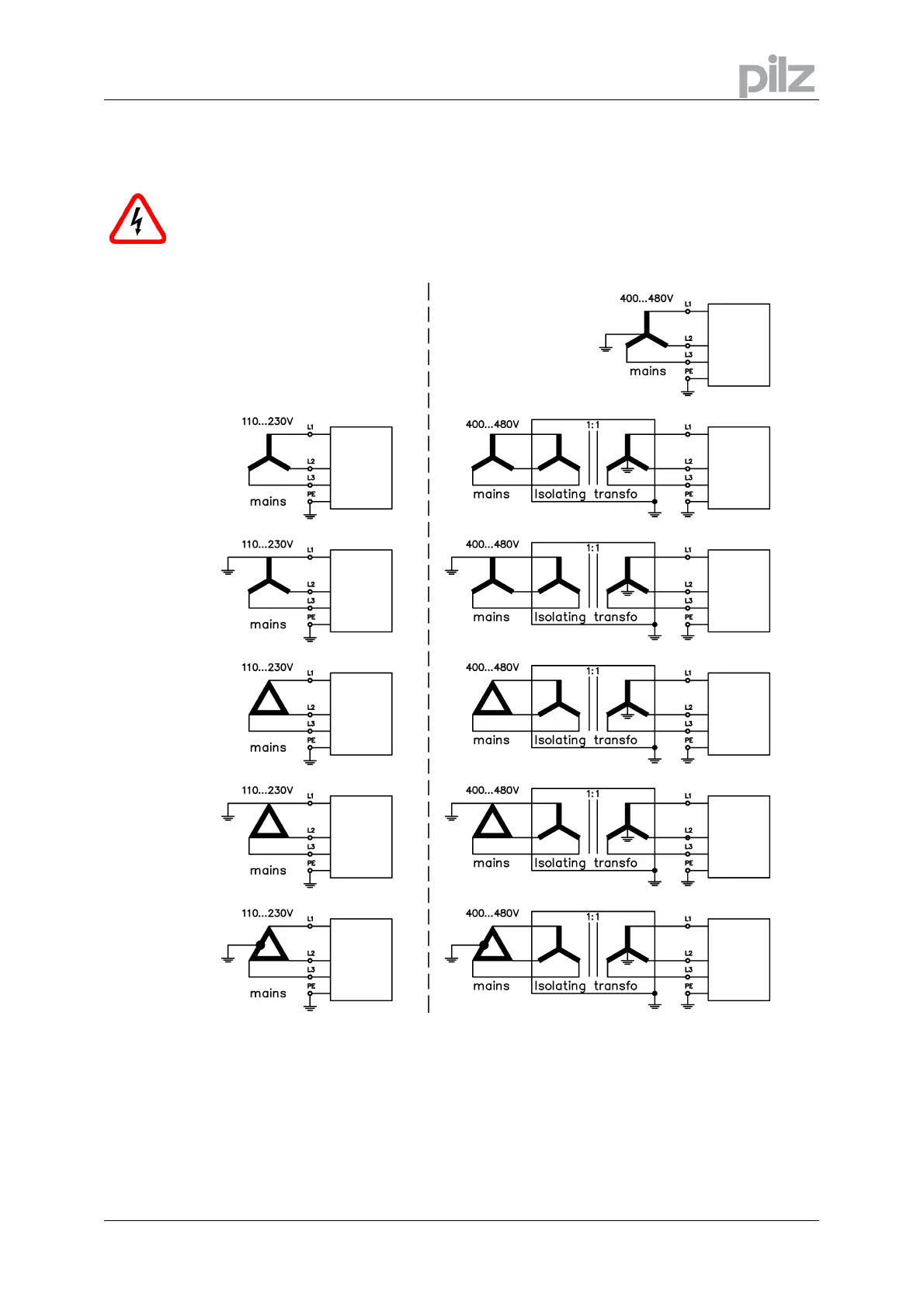

This page illustrates all the possible connection variations for different electrical supply

networks.

An isolating transformer is always required for 400 … 480V networks that are

asymmetrically grounded or not grounded

230V series: 480V series:
