9 Interfaces
Page 48 Installation manual for PMCtendo DD5/PMCprimo Drive3

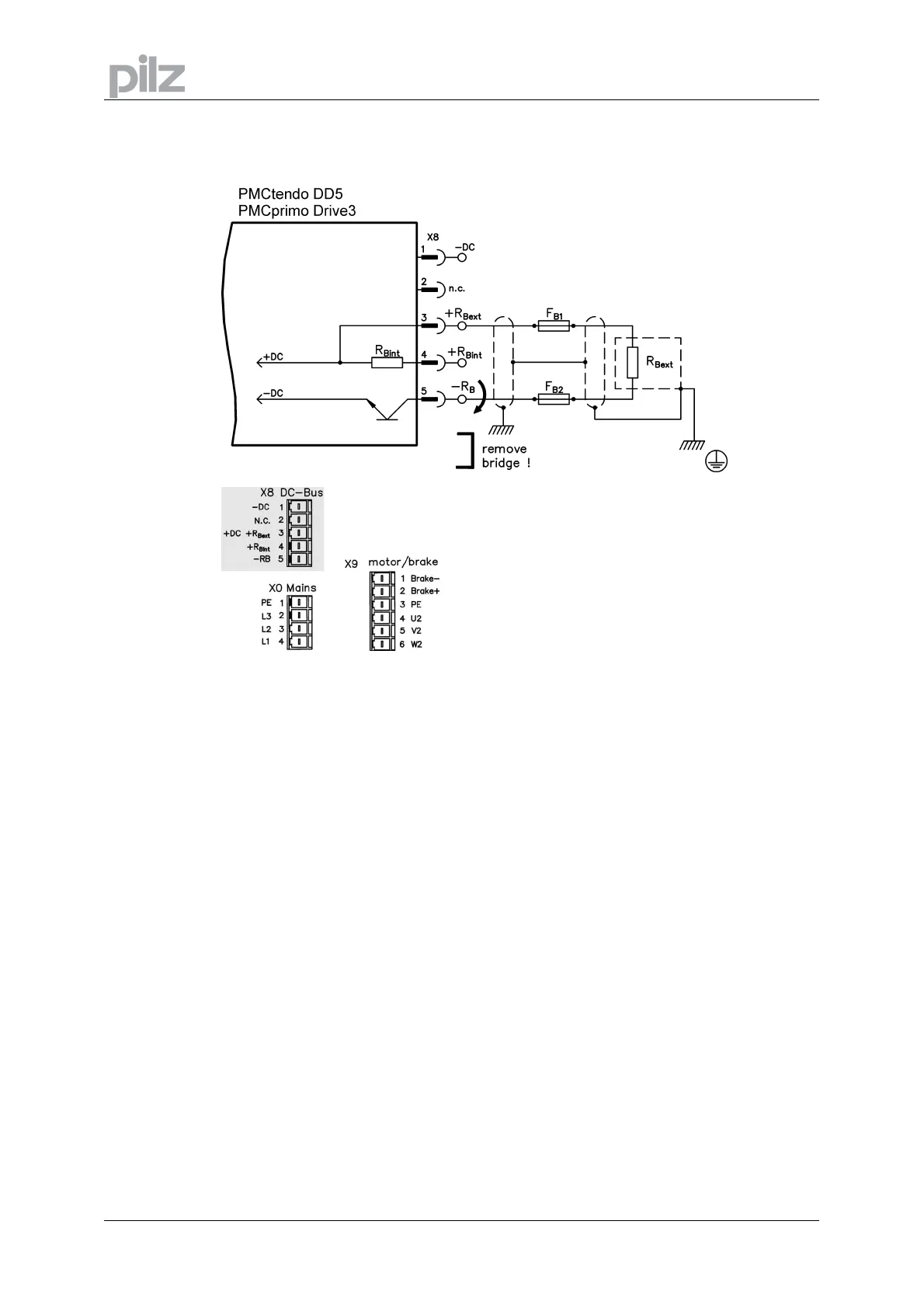

9.5 External regen restistor (X8)
Remove the plug-in link between the terminals X8/5 (-R
B
) and X8/4 (+R
bint
).
