11 Expansions and Accessories
Page 108 Installation manual for PMCtendo DD5/PMCprimo Drive3
11.1.4.3 Connector assignments
RS232 CAN1=CAN2
X6A Pin Signal X6B=X6C Pin Signal
1 1 CAN-ERROR (*)
2 RxD 2 CAN-Low
3 TxD 3 CAN-GND
4 4 CAN-BTB(*)
5 GND 5
6 6 CAN-GND
7 7 CAN-High
8 8
9 9 CAN-POWER(*)
(*) only when connecting with multi PMCprimo devices in CAN main net

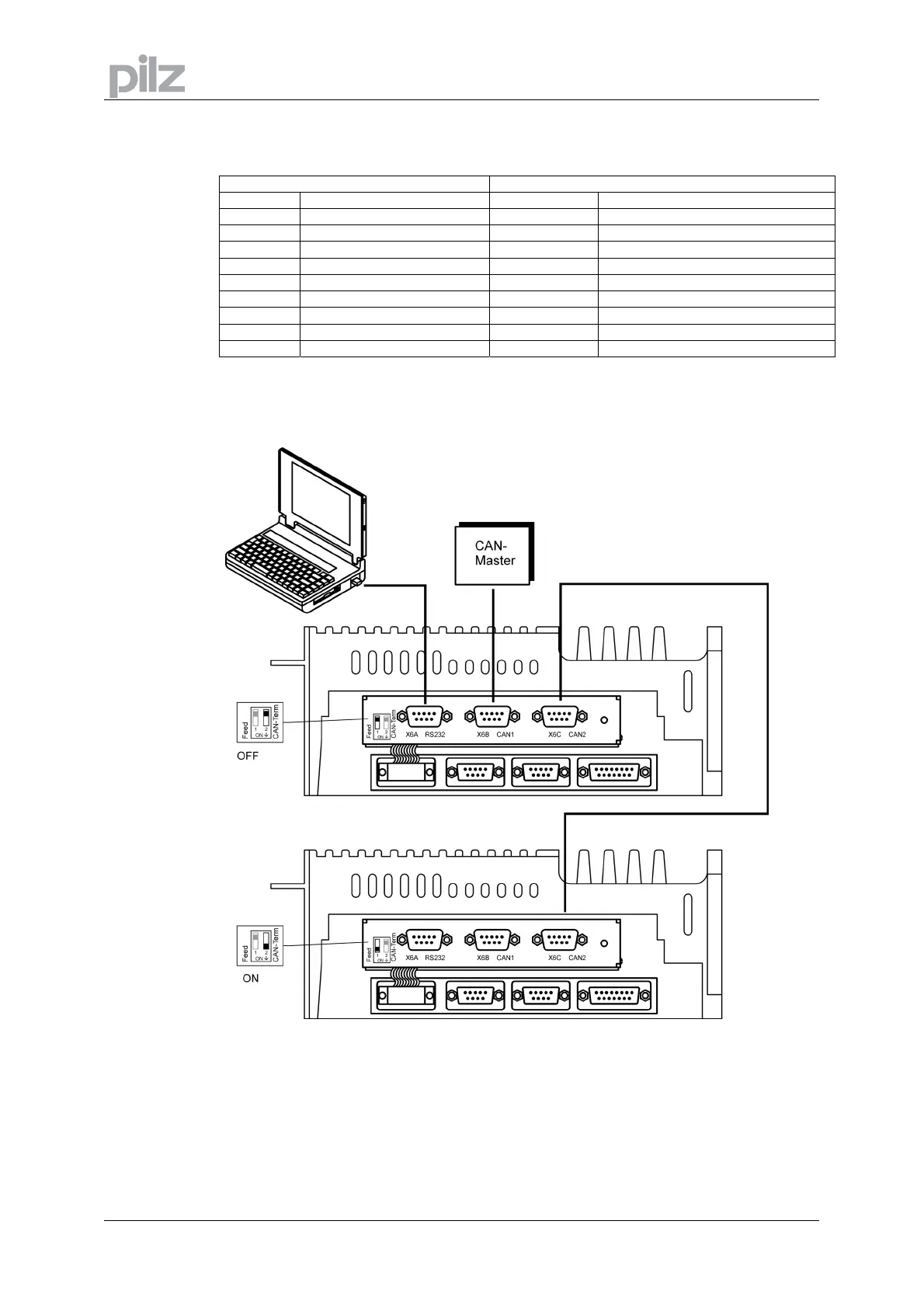

11.1.4.4 Connection diagram
