ENGINE
2.24
Disassembly, Cont.

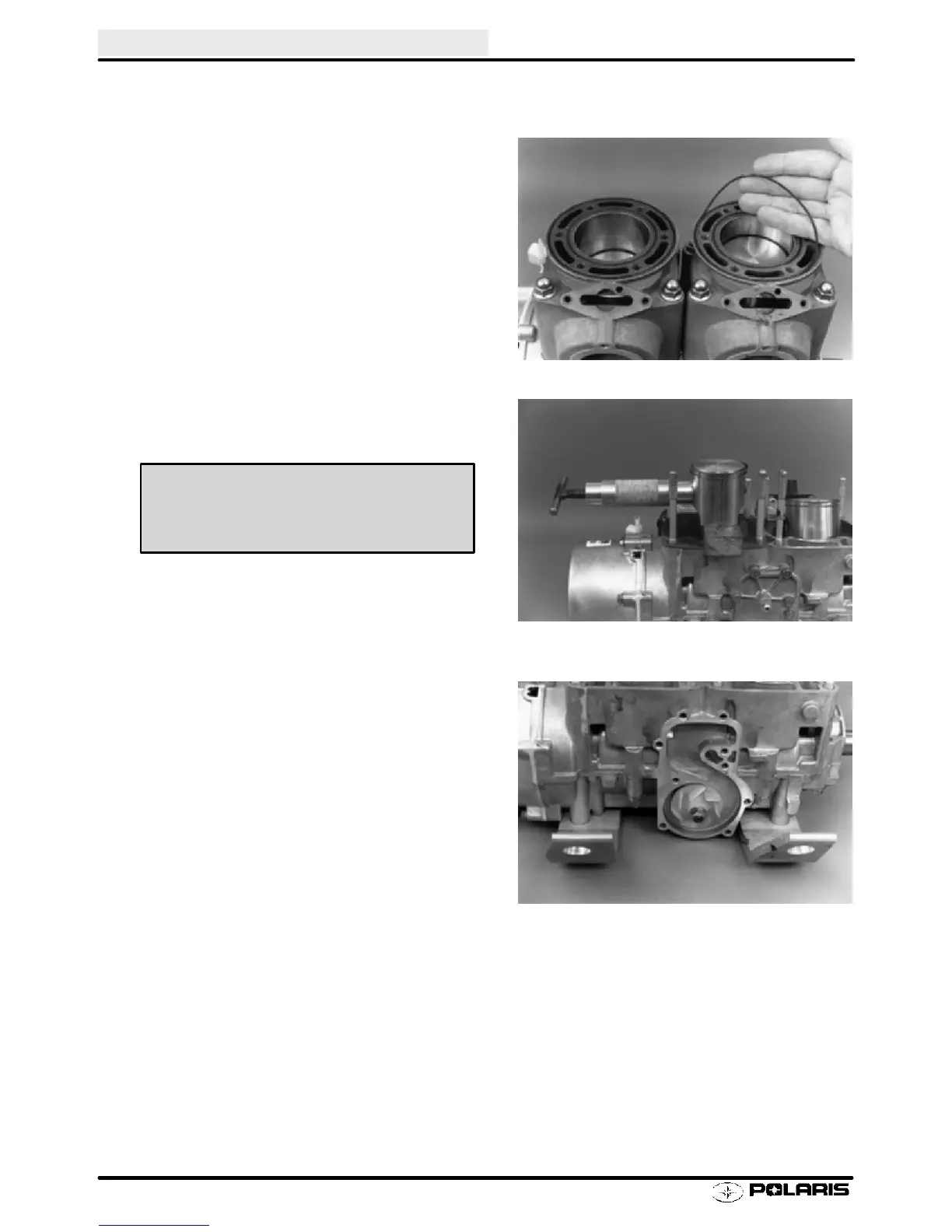

4. Remove cylinder base nuts. Note location of acorn
nuts on exhaust side (where applicable).
5. Carefully remove cylinders while supporting pistons
and connecting rods to prevent piston damage.
Refer to General Inspection Procedures in this
chapter.
6. Remove outer piston pin C-clips using a scribe
through access slot in piston.
7. Place support block under piston and remove piston
pins using pin puller.
8. Remove water pump cover from front of engine.
Piston Pin Puller PN 2870386
Support Block PN 2870390
