Appendix C
A-108

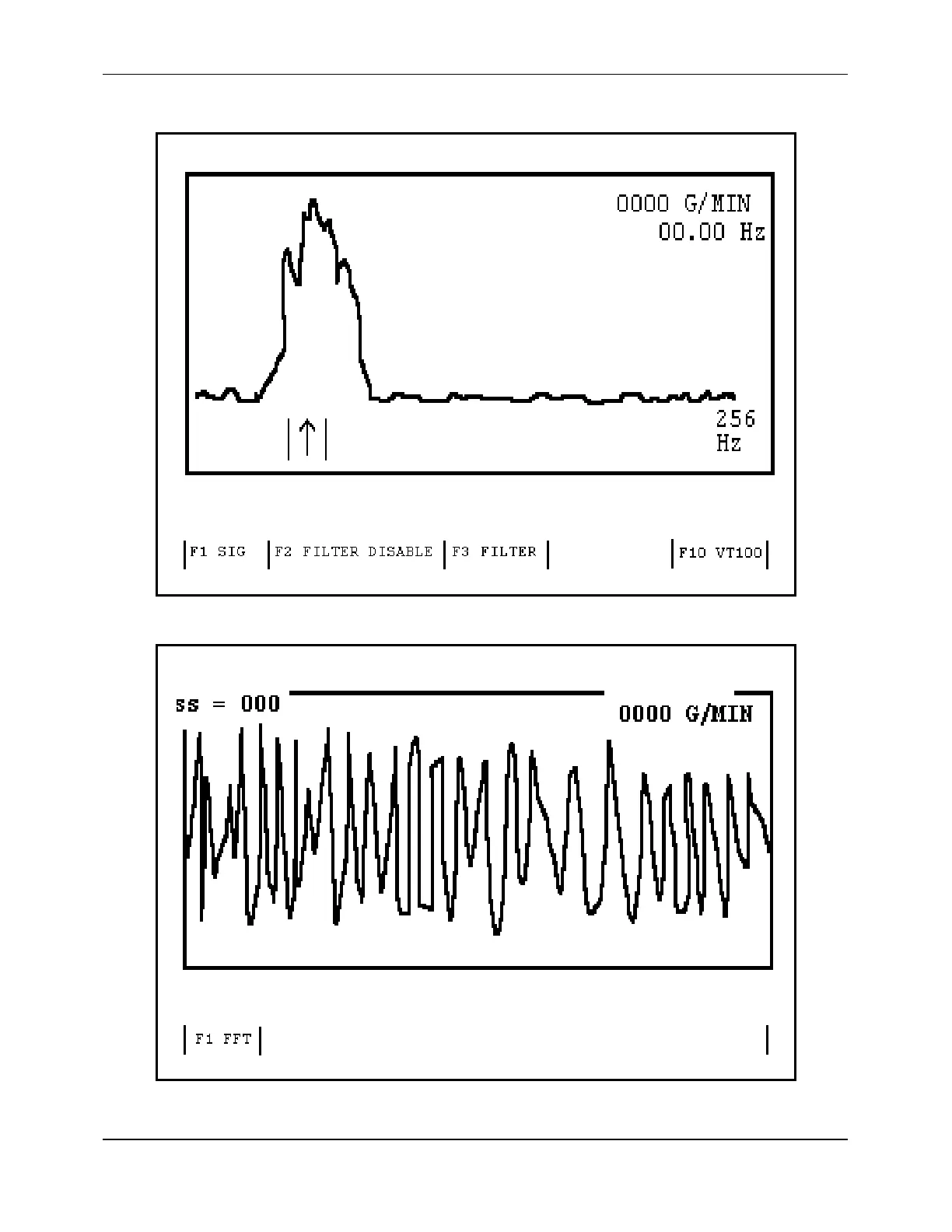

Figure A-7 Signal Analysis Screen (Signal Displayed in the Frequency [FFT] Domain)
Figure A-8 Signal Analysis Screen (Signal Displayed in the Time [SIG] Domain)
