Appendix C
A-72
16. Mount the transducers with pipe straps by following steps 5 through 10 in Section 4.2
(Figure 4-18).

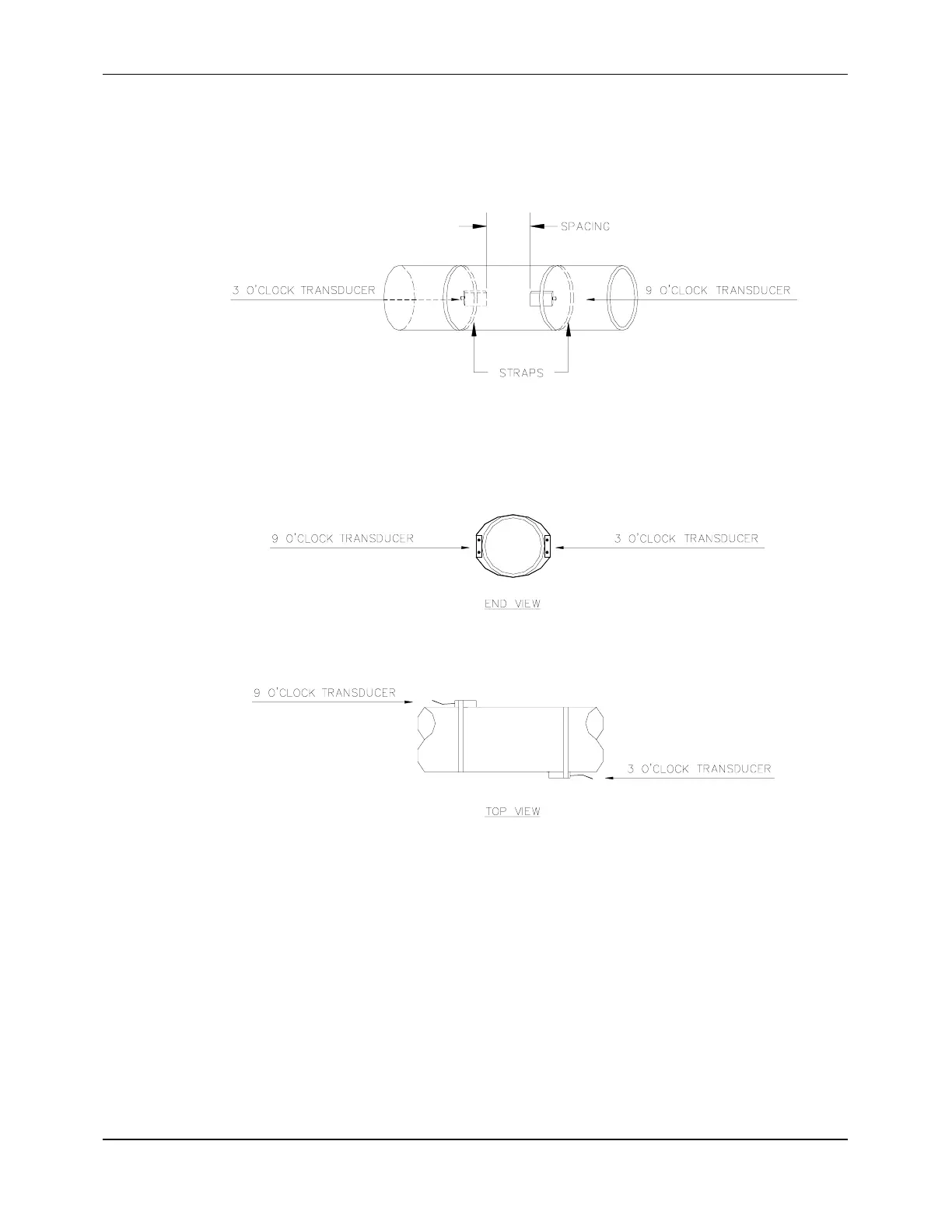

Figure 4-18 Mounting the Transducers with Straps (Z Method)
Figure 4-19 illustrates the final Z method installation.
Figure 4-19 Final Z Mounting Method Installation
