11. Position the lower outrigger tube mount onto the main r frame mount and secure
using the four bolts and washers. Slide excess cable length into the outrigger tube.
Then position the upper outrigger tube mount onto the console bracket assembly
mount and secure using the three bolts and washers. Feed the data cable through the
console bracket assembly to the console.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 184
6 Available Replacement Procedures

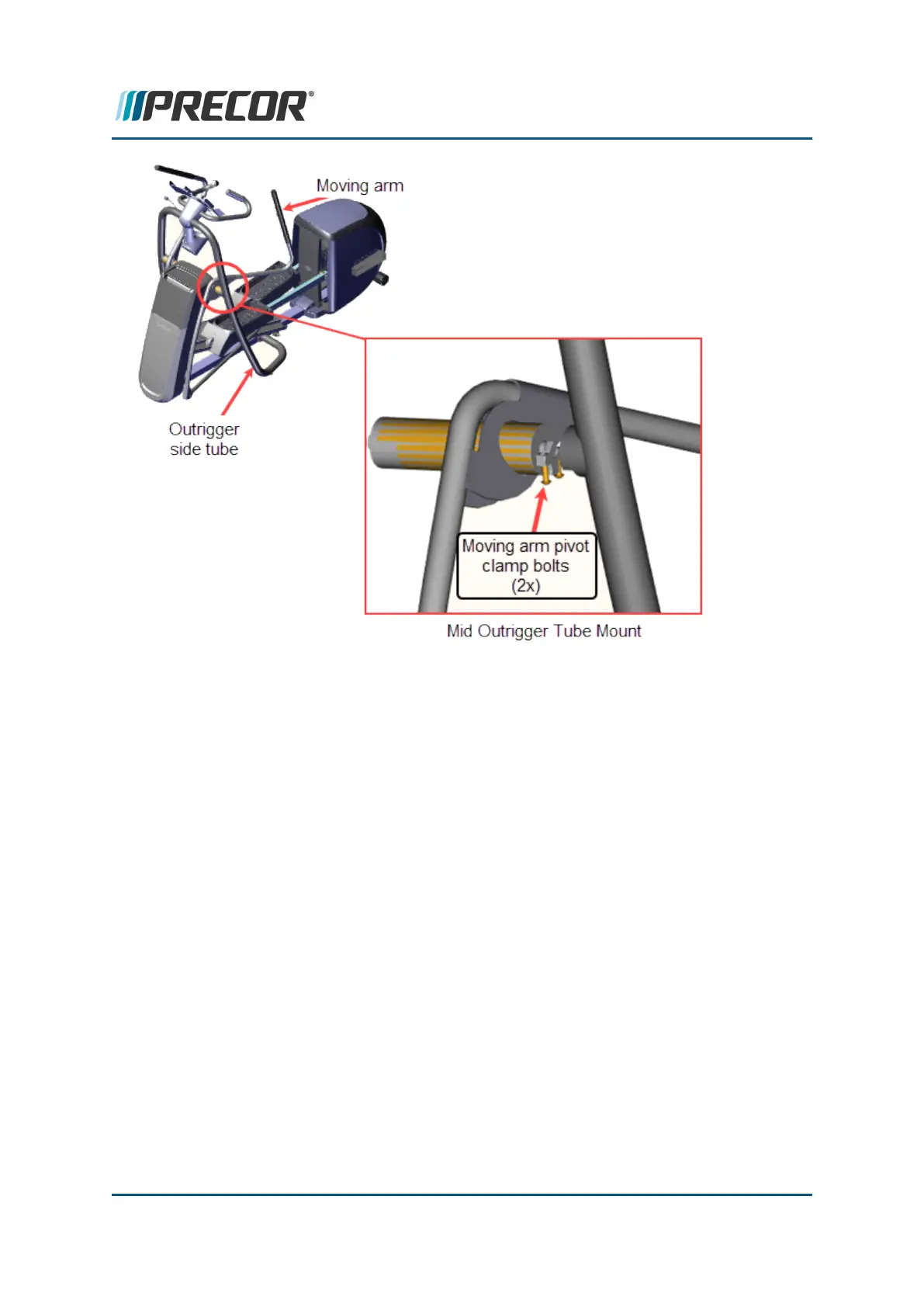

Outrigger Side Tube Replacement
