A3025
Communication information

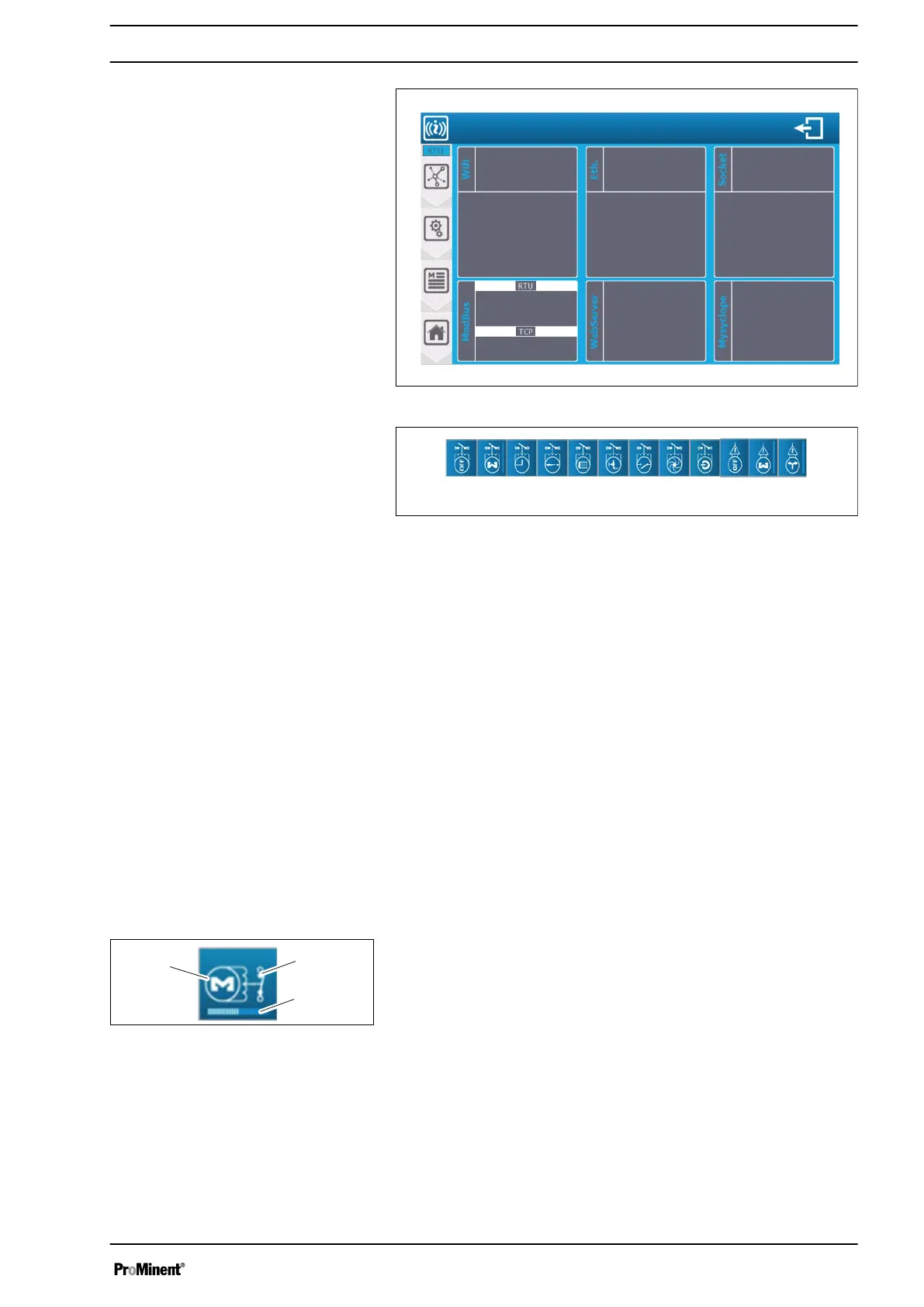

Fig. 31: Information on the communication interfaces
1
12
11
10
9
8
7
65
4
3
2
A3026
Fig. 32: Display of the outputs
1 Relay output not used
2 Relay output in metering mode*
3 Relay output on the timer
4 Relay output with alarm
5 Relay output on the lower storage tank
6 Relay output on water circulation
7 Relay output on contact
8 Relay output with flow
9 Relay output at the ON/OFF controller or parameter
10 4 ... 20 mA output not used
11 4 ... 20 mA output in metering mode*
12 4 ... 20 mA output in transmission mode
*: The symbols become animated when metering mode is enabled.
The rotation of the metering symbol depends on the capacity.
The visual status of the relay is displayed as closed when the relay
is enabled.
The bar diagram (2) within a corresponding symbol visualises the
approximate capacity of the element.
1 Display of the position
2 Bar diagram showing the metering capacity of the relay
3 Rotation according to the capacity
Bar diagram
A3027
2
1
3
Fig. 33: Relay output in metering
mode
Operating concept and operation
33
