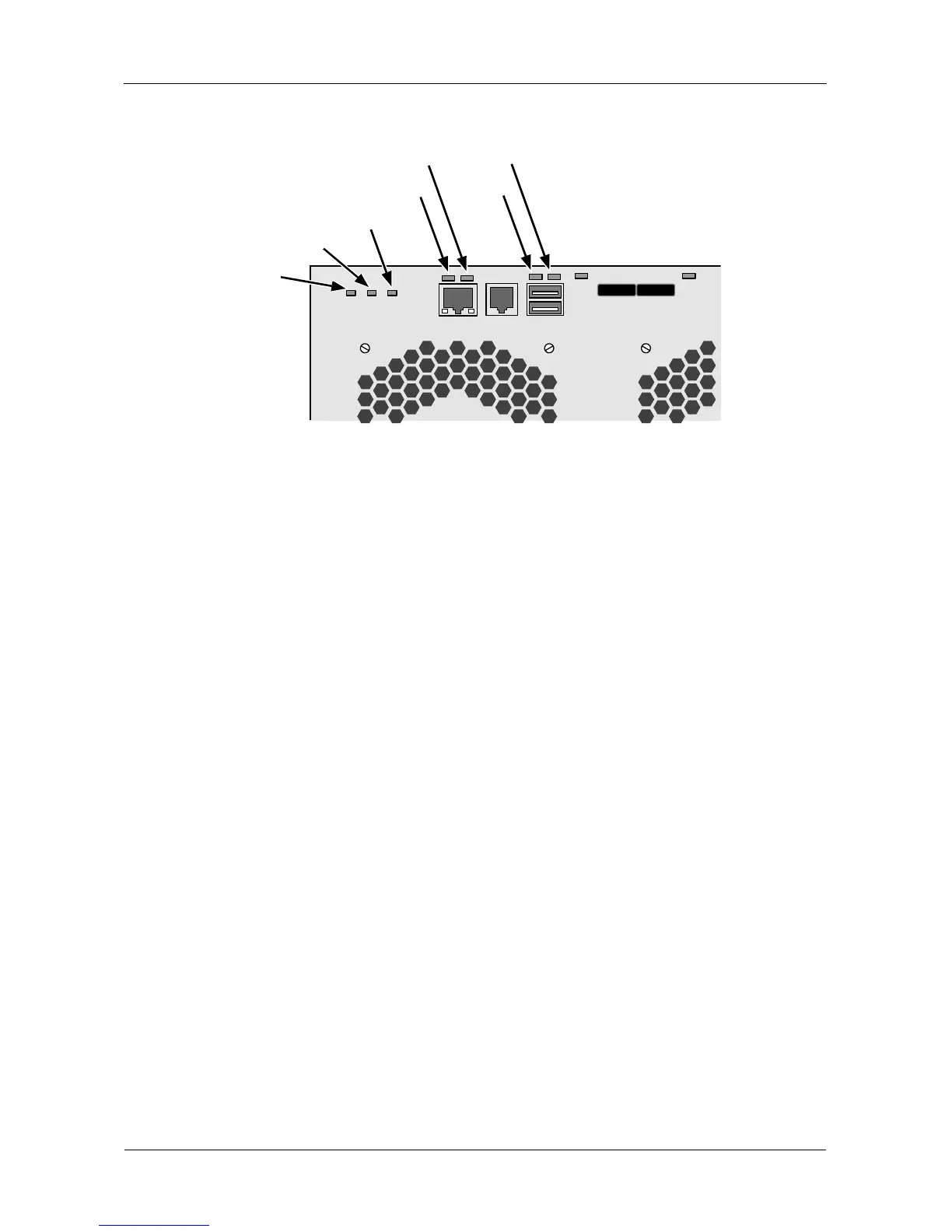

Figure 4. VessRAID enclosure LEDs
Viewing Enclosure Topology
Enclosure topology refers to the manner in which the data paths among the
enclosures are connected:
• Individual Subsystem – One VessRAID subsystem
• JBOD Expansion – One VessRAID subsystem plus one or more VessJBOD
expansion subsystems, managed through the VessRAID or head unit
The physical connections for these arrangements are discussed in “Chapter 2:
VessRAID Installation” on page 9.
To view enclosure topology:
1. From the Main Menu, highlight Subsystem Management and press Enter.
2. Highlight Enclosure Topology and press Enter.
Controller Status
Fan 2
Fan 1
Battery
USB 2
USB 1
Dirty Cache
