Enclosure Problems
WebPAM PROe displays yellow !s red Xs in Tree View to identify
components that need attention.
When a yellow ! appears over a Subsystem in Tree View, click the Enclosure
icon. The Enclosure screen will display (below).

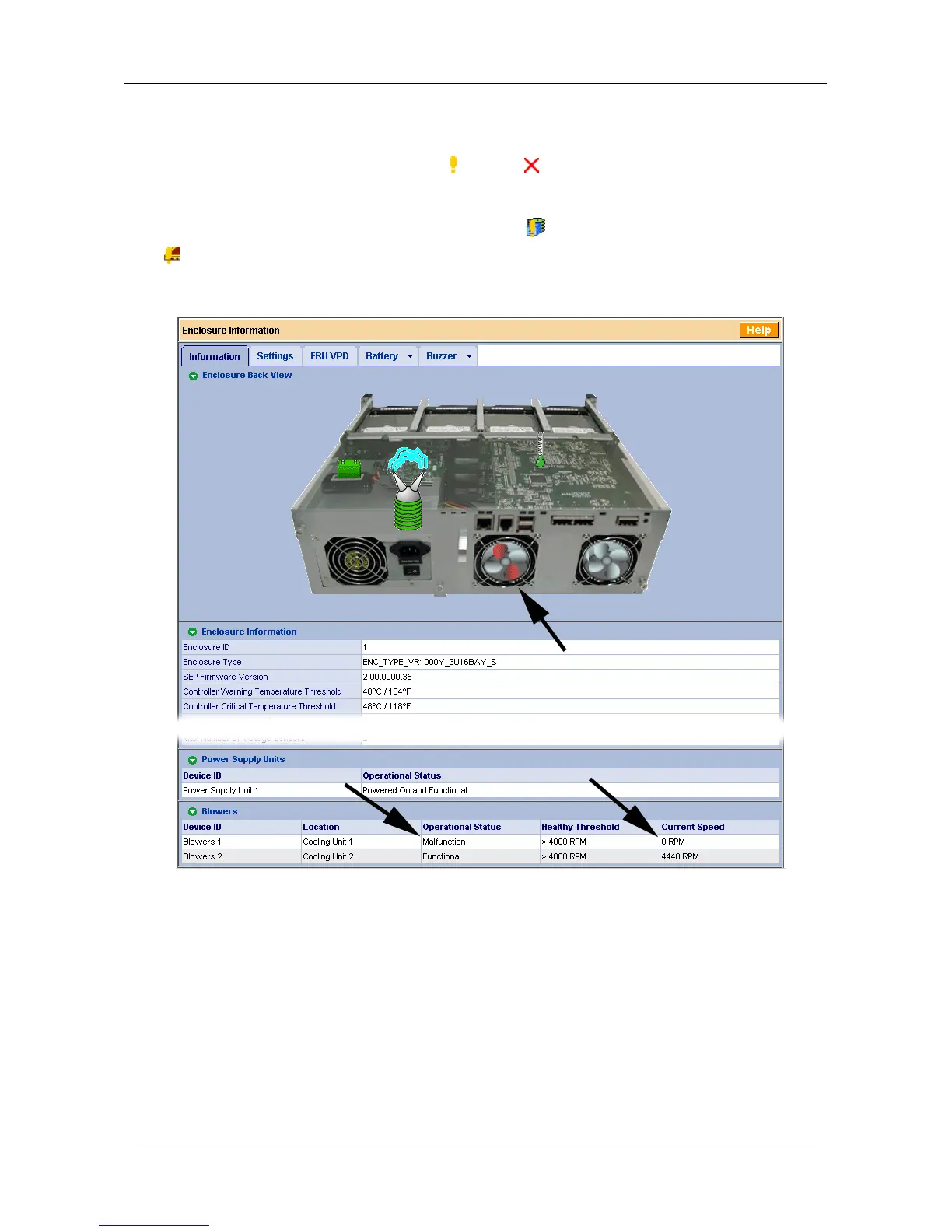

Figure 16.Enclosure information in Management View
In this example, one of the RAID Controller fans has failed. The Enclosure
Diagram displays color and motion changes to identify the failed fan. In WebPAM
PROe, RAID Controller fans are called Blowers.
See “Replacing a Cooling Fan” on page 210 for instructions.
Note that the image above was shortened to fit on the page.
