If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark.
The Power/Activity LED flashes during drive activity.
The Disk Status LED displays Green when a drive is present and configured.
See “Critical & Offline Disk Arrays” on page 276 for a discussion of rebuilding and
failed disk drives.
LCD Panel
When the VessRAID is fully booted and running under normal conditions, the
LCD screen shows the VessRAID model number and IP address. If a problem is
detected in the subsystem, the LCD screen displays a Check Event message, as
shown in Figure 4.

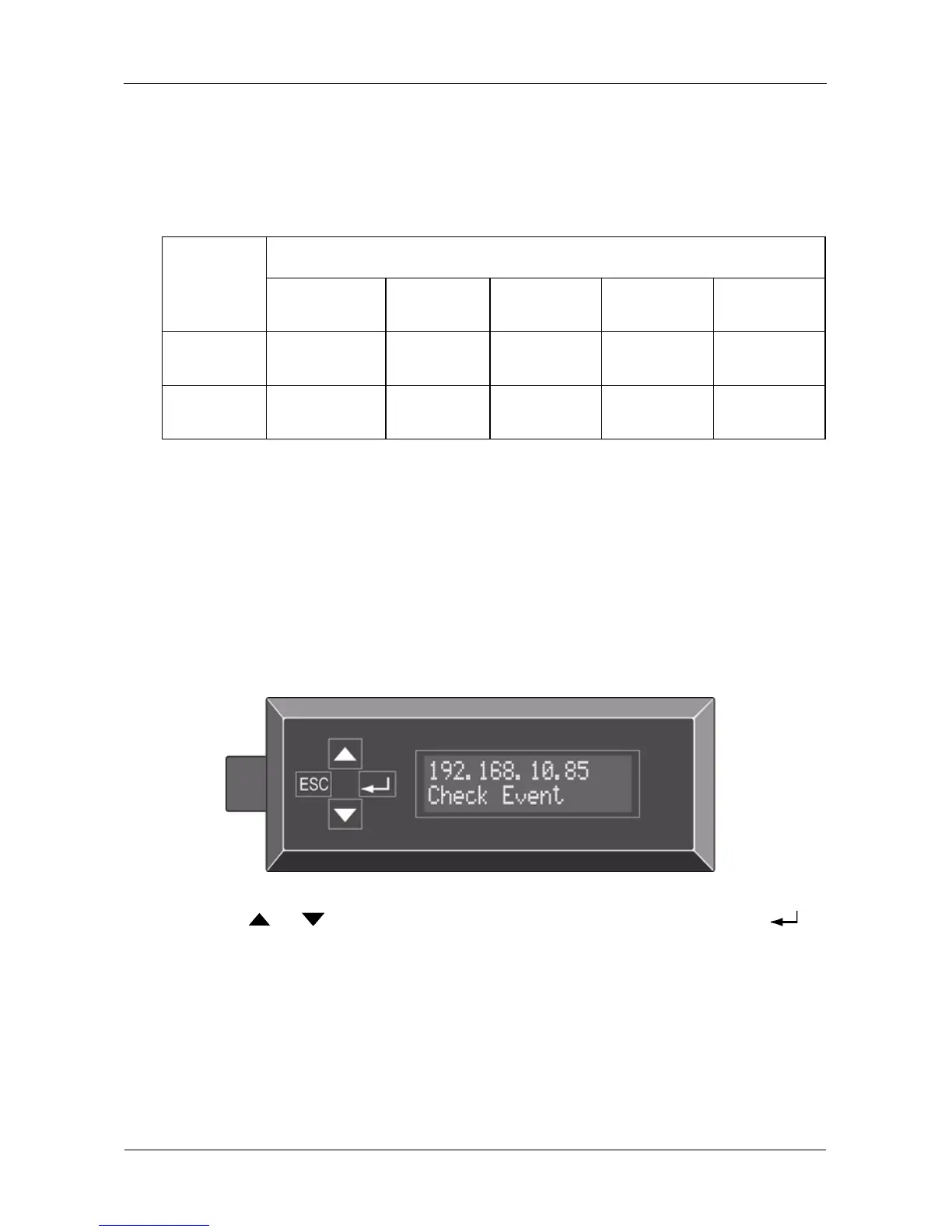

Figure 4. VessRAID optional LCD display
Press the or button to see the View Events menu. Then press the
button to read the Events.
Controller LEDs
Under normal conditions, the Controller Status LED is green and the Dirty Cache
LED icon is dark. The battery and fan LEDs should display green. See the figure
and table below.
LEDs
State
Dark
Steady
Green
Flashing
Green
Amber Red
Power/
Activity
No Drive
Drive
Present
Activity — —
Status
No Drive or
Unconfigured
Drive OK
Locating the
Drive
Drive
Rebuilding
Array Drive
Offline
