Chapter 2: VessRAID Installation
11
Installing the LCD Panel (Optional)
The LCD panel mounts to the VessRAID enclosure in place of the left handle that
was installed at the factory.
1. Remove the two screws and detach the left handle from the VessRAID
enclosure, as shown in Figure 4.

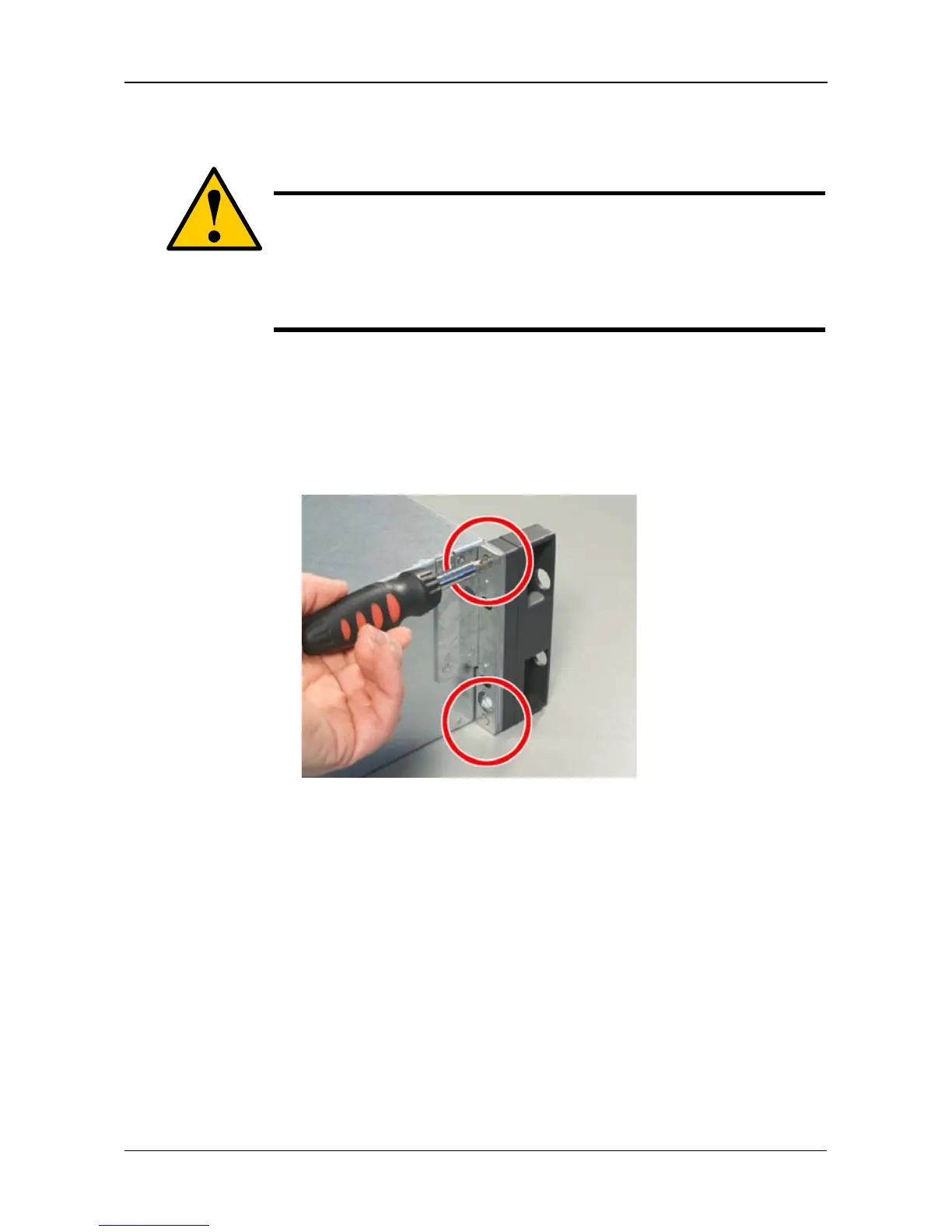

Figure 4. Remove the screws that attach the left handle to the enclosure
2. Align the connector on the left bracket of the VessRAID enclosure to the
connector on the back of the LCD panel, as shown in Figure 5.
Cautions
• The LCD panel is NOT a hot-swap device. Be sure the
VessRAID is powered down before you connect or disconnect
the LCD panel.
• You must install the LCD panel before you mount the
VessRAID subsystem in a rack.
