Chapter 7: Maintenance
215

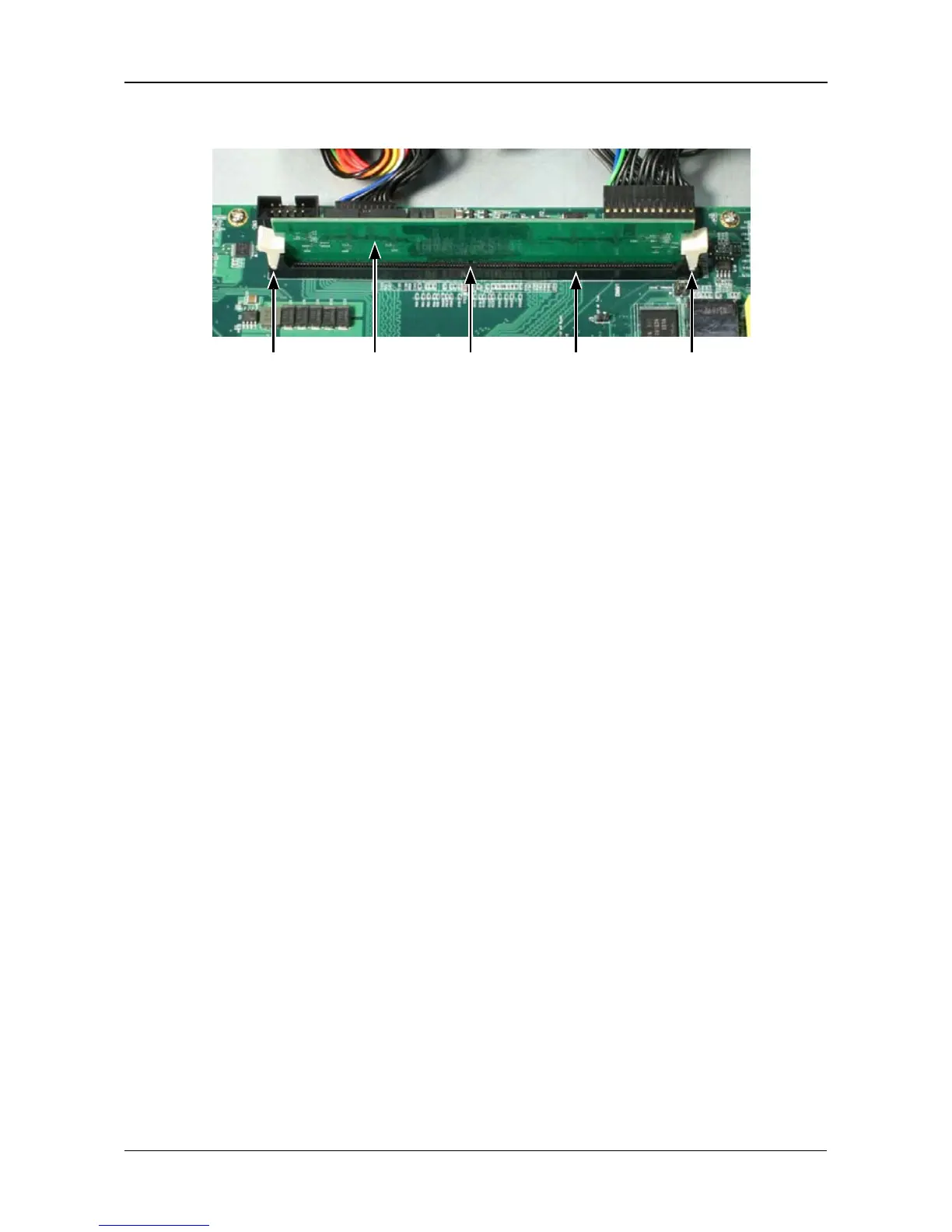

Figure 9. RAID Controller memory module
4. Align the new memory module with the memory slot so the groove lines up.
5. Gently press the memory module into the slot until the retainers click into
locked position.
6. Attach the RAID Controller cover and install the two attaching screws.
See page 211, Figure 3.
7. Reinstall the RAID Controller.
See “Replacing a RAID Controller” on page 209.
This completes the memory module replacement procedure.
Memory
module
RetainerRetainer Memory
slot
Alignment
groove
