VessRAID 1740s, 1840s Product Manual
14
3. Attach the mounting rail assemblies to the outside of the rack posts, using
the attaching screws from your rack system.
Be sure the support is on the bottom facing inward.
4. Square the rail assemblies in the rack.
5. Tighten the adjustment screws and the attaching screws.
6. Place the VessRAID subsystem onto the rails.
7. Secure the VessRAID subsystem to the rack through each handle, using the
attaching screws from your rack system.

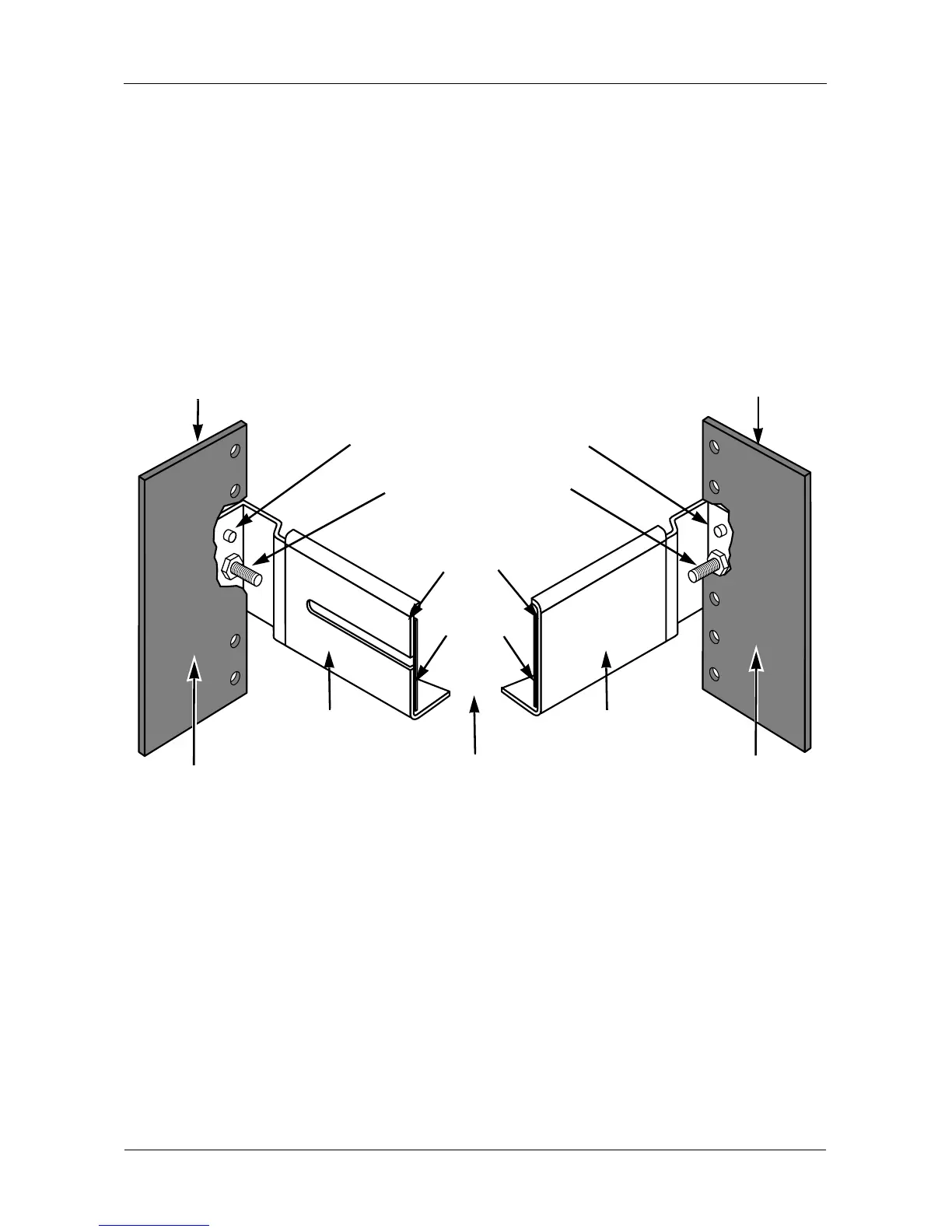

Figure 8. Rack mount assembly diagram
This completes rack mounting.
Inside of post
Rack front post
Rail attaching screws
(not included)
Rail adjustment screw
(center, outside of rail)
Flange
Inside of post
Rack back post
Front rail
Rear rail
Support
Locating pins (2 on each end)
