VessRAID 1740s, 1840s Product Manual
18

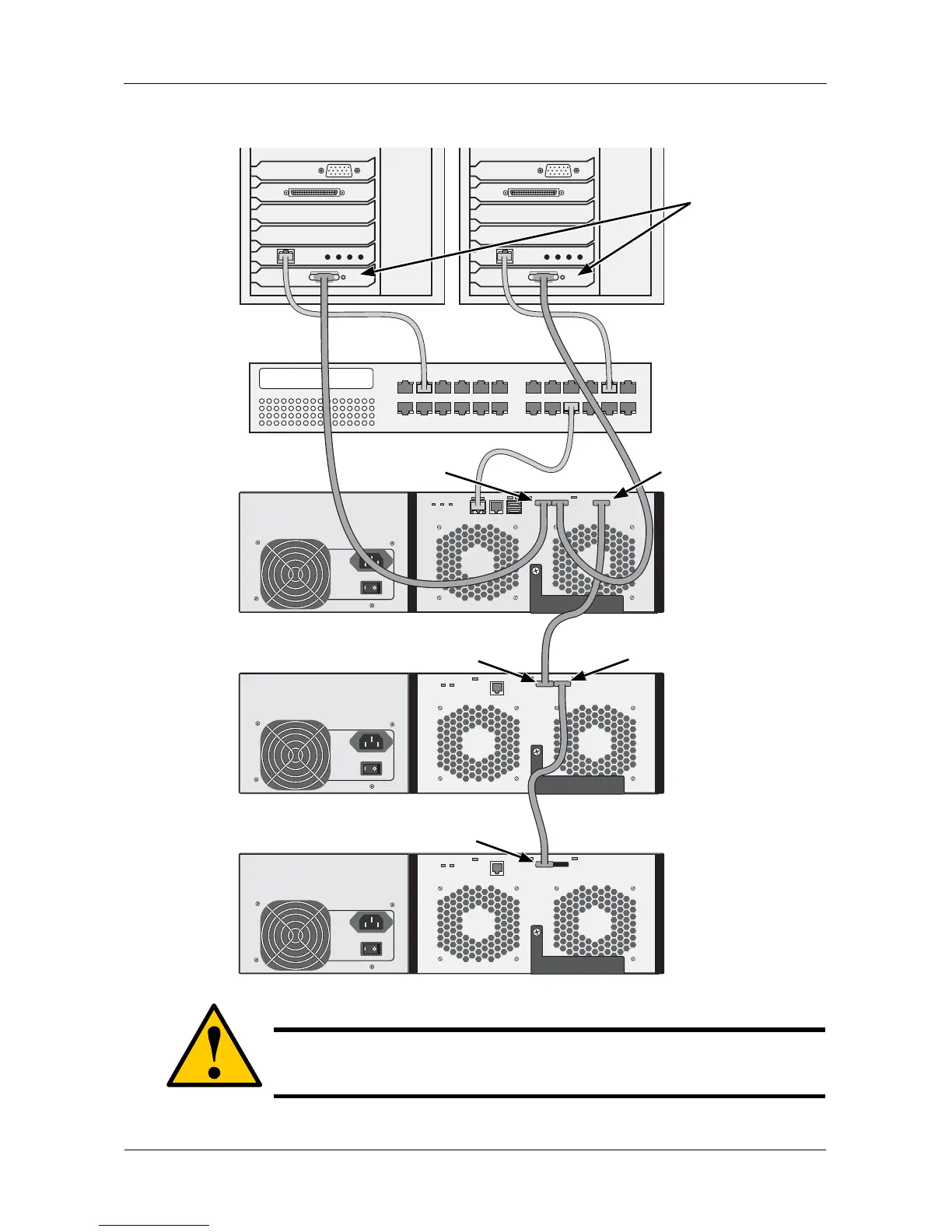

Figure 11.Data and management connections
This completes data and management connections.
Caution
Make data connections carefully. If you accidently switch a SAS IN
connection with a SAS OUT, the RAID system cannot function.
Host PCs or
Servers
SAS HBA
cards
Network
Switch
VessRAID
VessJBOD
SAS Expansion por
To Next Page
