ProSoft Technology PLX51-PBM User Manual

PLX51-PBM Migrating Legacy PCB Projects
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 147 of 196

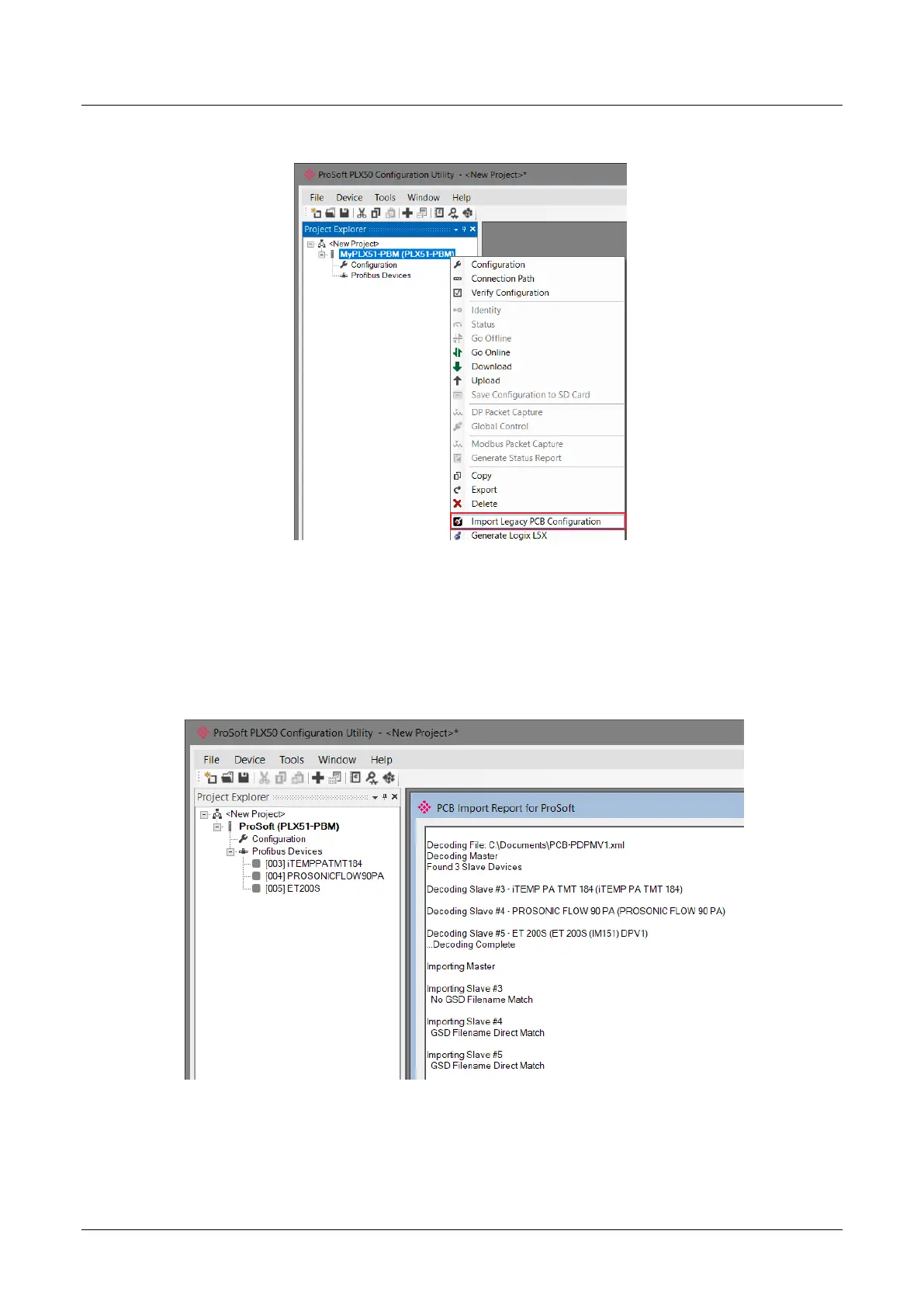

In the PLX50 Configuration Utility, right-click on the PLX51-PBM module and select
the Import Legacy PCB Configuration option.
Figure 6.5 – Import Legacy PCB Configuration
After the import is complete, an Import Report summary will be shown, and may
indicate any issues encountered during the import process.
If an exact GSD filename is not found, a suitable (matching) alternative will be
sought.
The master and slave device configurations can then be modified if required.
Figure 6.6 – Legacy PCB Import Report
