PLX51-PBM Device Type Manager (DTM)
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 150 of 196

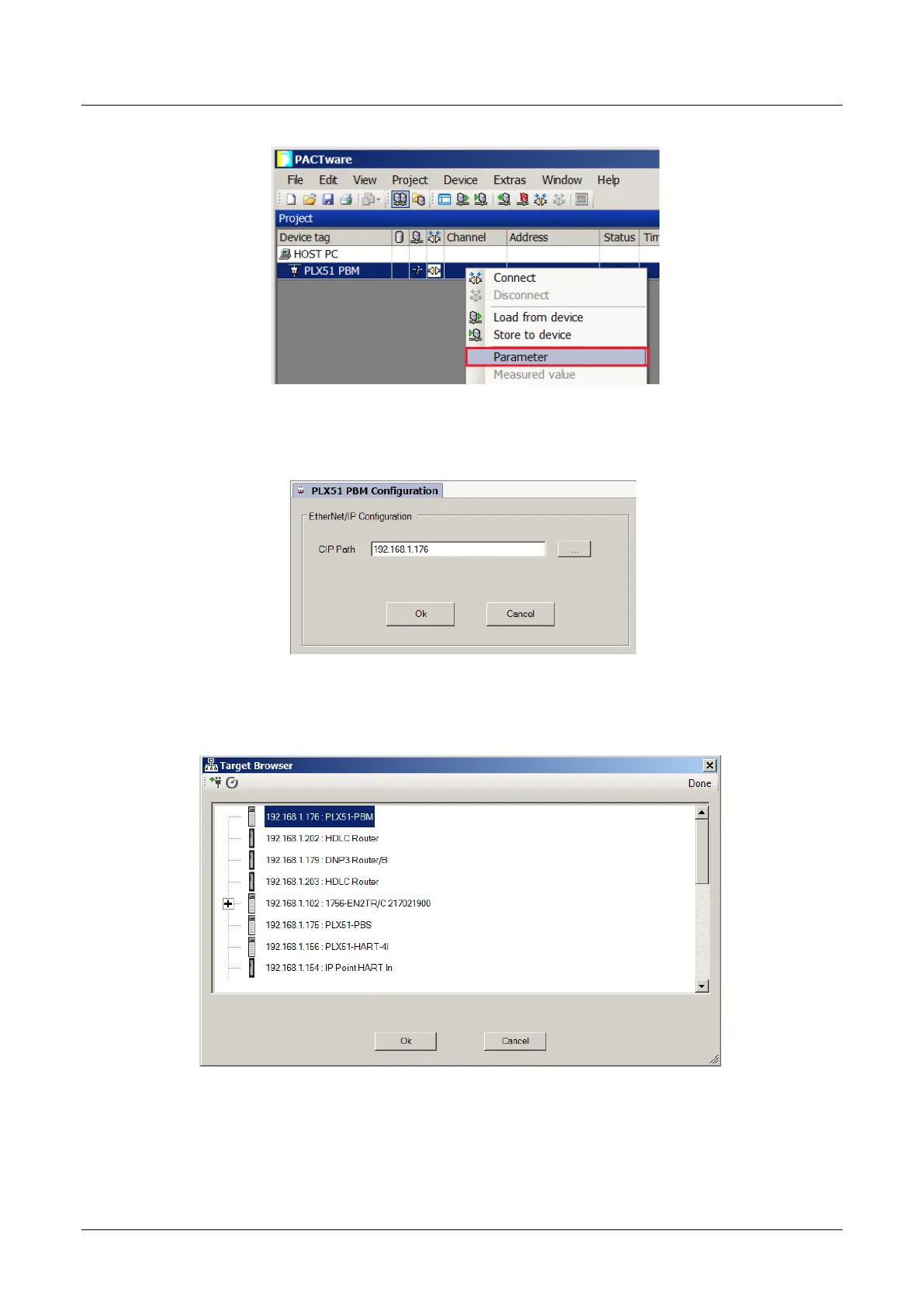

After instantiating the PLX51-PBM DTM, select the Parameter option.
Figure 7.4 – Select Parameter option
The PLX51-PBM DTM’s configuration allows the CIP Path to the PLX51-PBM to be
configured. This is typically just the IP address of the PLX51-PBM.
Figure 7.5 – PLX51-PBM CIP Path
The path can either be entered manually or the Browse button can be used to open
the Target Browser, and then the PLX51-PBM can be selected.
Figure 7.6 – Target Browser
