PLX51-PBM Device Type Manager (DTM)
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 151 of 196
Once the PLX51-PBM DTM has been configured, the child Device DTMs can be
added by right-clicking on the PLX51-PBM DTM and selecting Add Device.
The user can then select the matching device DTM.

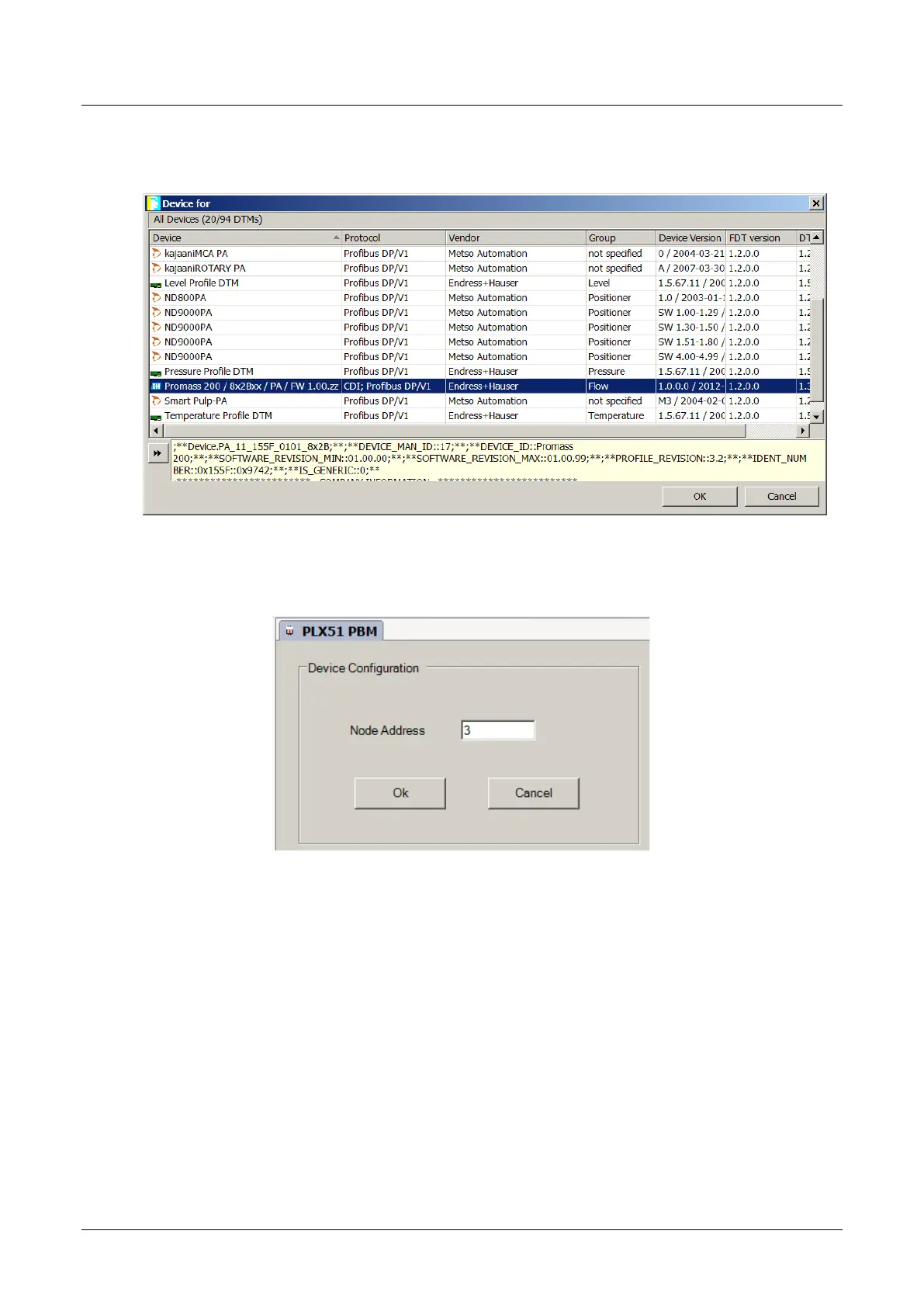

Figure 7.7 – Device DTM Selection
Once the child Device DTM has been added, a configuration window opens to set the
Station Node address.
Figure 7.8 – Device DTM Node Address
