PLX51-PBM Device Type Manager (DTM)
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 153 of 196

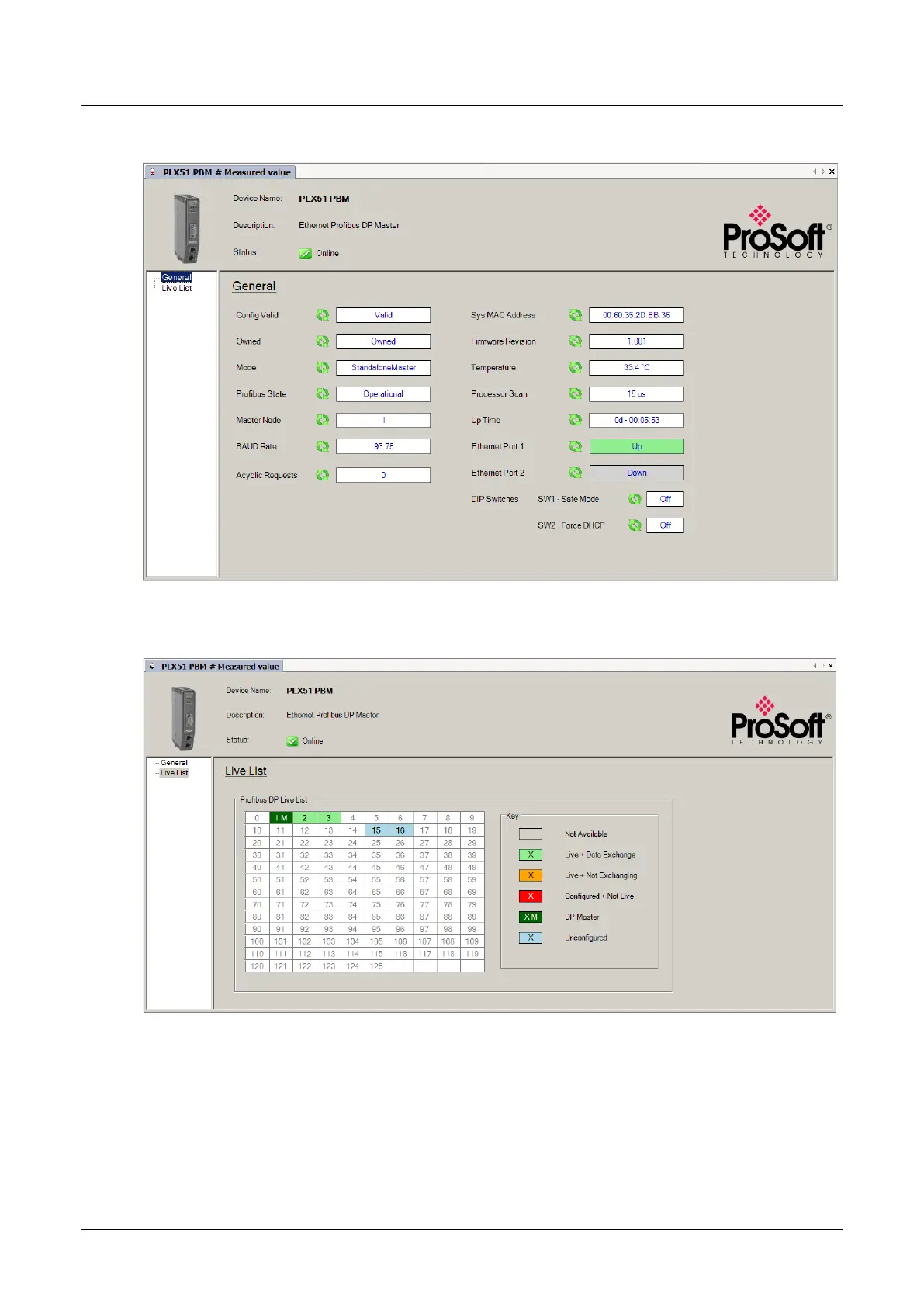

The General page provides basic status information for the PLX51-PBM module,
including LED status and CPU status etc.
Figure 7.11 – PLX51-PBM DTM - General Status Page
The Live List page shows the state of the devices on the PROFIBUS network.
Figure 7.12 – PLX51-PBM DTM - Live List Page
