PLX51-PBM Device Type Manager (DTM)
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 154 of 196
Slave Device DTM under the PLX51-PBM DTM can also be brought online by
selecting the Online or Connect option.

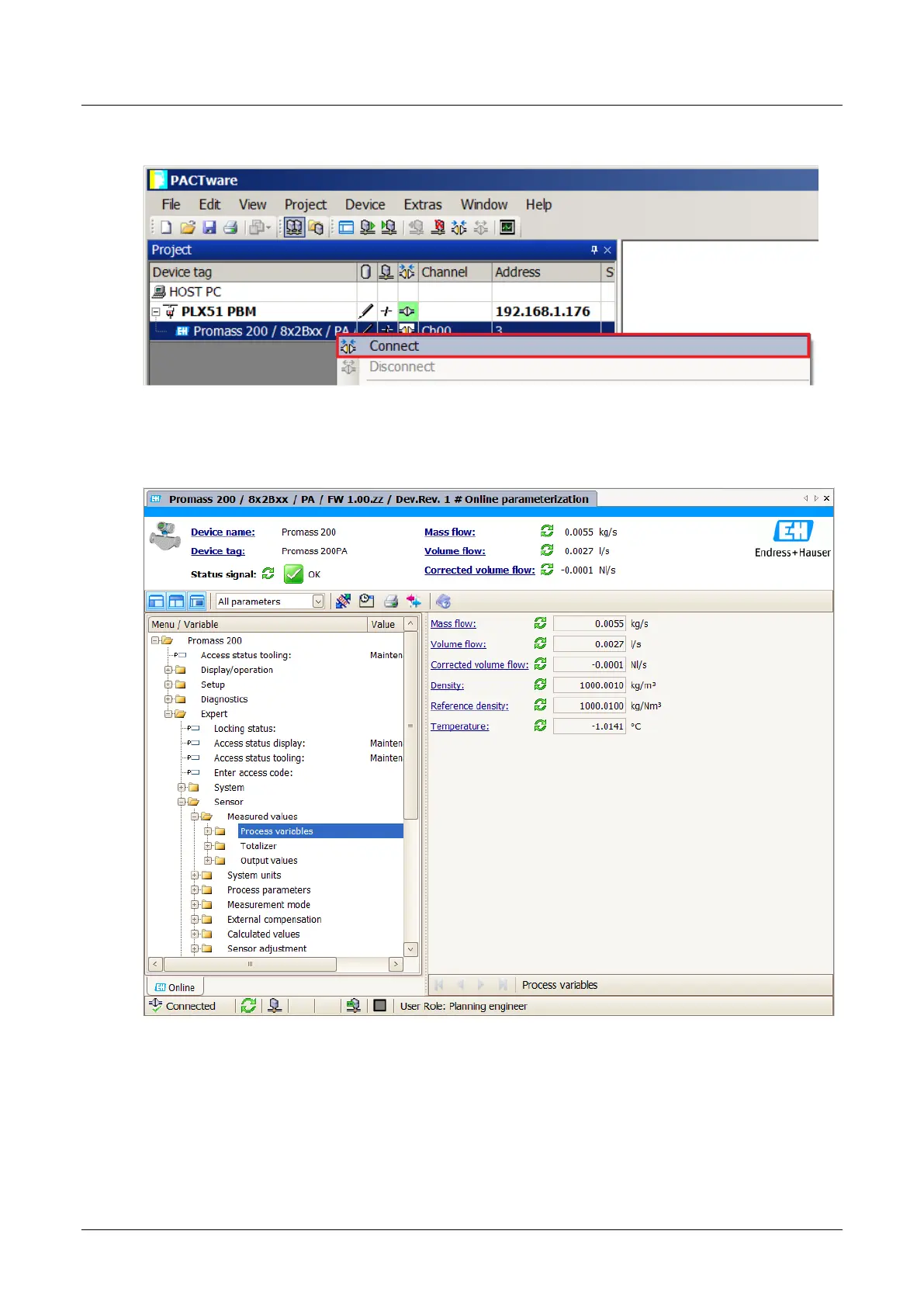

Figure 7.13 – Slave Device DTM Connect
Depending on the device DTM, a number of online parameters, diagnostics and
measure variables can be displayed.
Figure 7.14 – Device DTM
