ProSoft Technology PLX51-PBM User Manual

PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 161 of 196
General Statistics
The General Statistics (PLX51-PBM Master mode only) tab displays the following
general parameters:

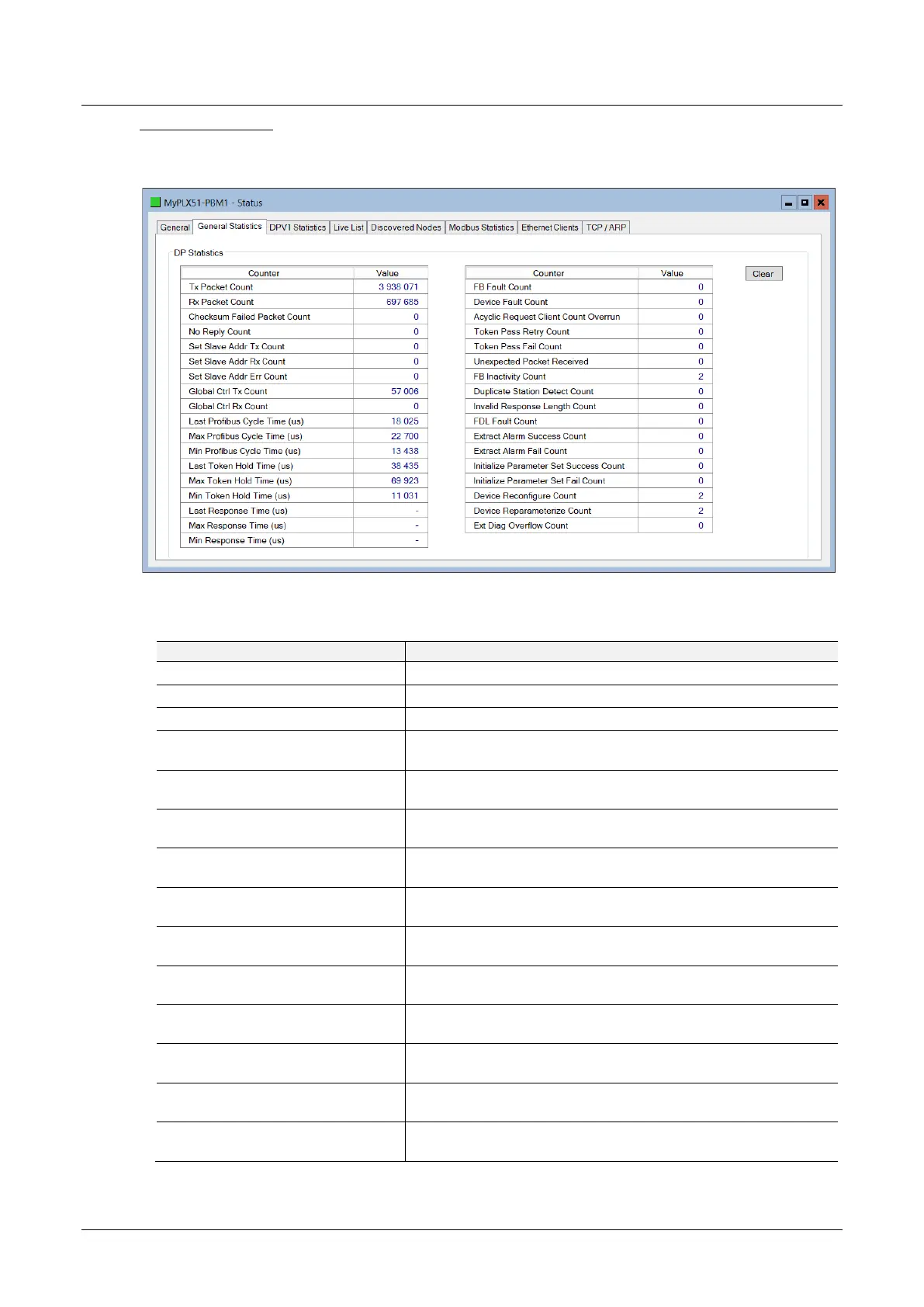

Figure 8.5 – PLX51-PBM (Master Mode) Status monitoring – General Statistics
Table 8.3 - Parameters displayed in the Status Monitoring – General Statistics Tab
Parameter
Description
Tx Packet Count
The number of PROFIBUS packets transmitted.
Rx Packet Count
The number of PROFIBUS packets received.
Checksum Failed Packet Count
The number of PROFIBUS packets that had a failed checksum.
No Reply Count
The number of PROFIBUS requests from the PLX51-PBM where
the station did not respond.
Set Slave Addr Tx Count
The number of PROFIBUS Set Slave Address requests sent from
the PLX51-PBM.
Set Slave Addr Rx Count
The number of successful PROFIBUS Set Slave Address
responses received.
Set Slave Addr Err Count
The number of failed PROFIBUS Set Slave Address responses
received.
Global Ctrl Tx Count
The number of PROFIBUS Global Control requests sent from the
PLX51-PBM.
Global Ctrl Rx Count
The number of PROFIBUS Global Control responses received by
the PLX51-PBM.
Last PROFIBUS Cycle Time
The time (in microseconds) the last PROFIBUS Cycle took to
complete.
Max PROFIBUS Cycle Time
The maximum time (in microseconds) the PROFIBUS Cycle took to
complete.
Min PROFIBUS Cycle Time
The minimum time (in microseconds) the PROFIBUS Cycle took to
complete.
Last Token Hold Time
The time (in microseconds) the PLX51-PBM held the token in the
last token rotation.
Max Token Hold Time
The maximum time (in microseconds) the PLX51-PBM held the
token.
