PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 172 of 196

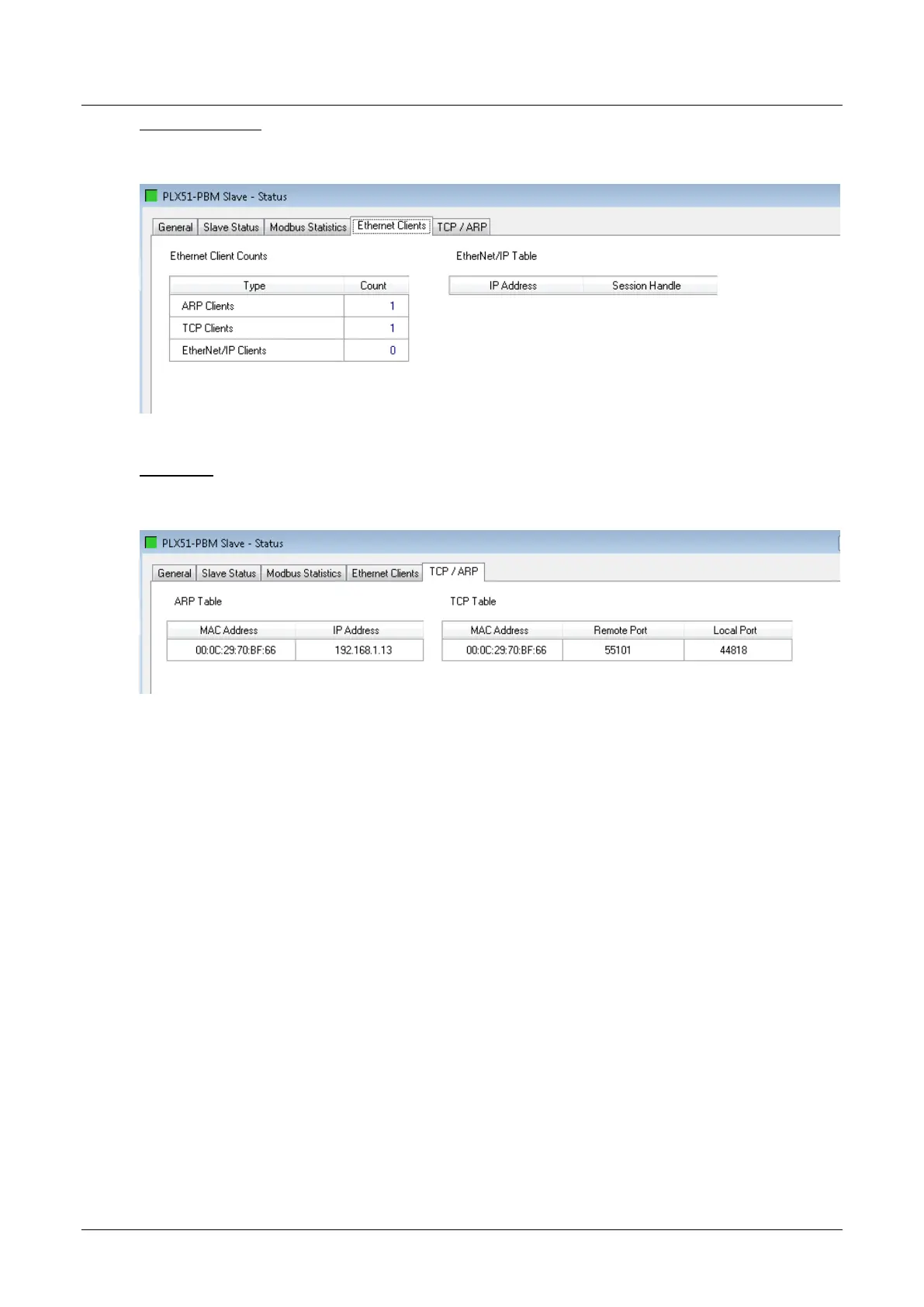

Ethernet Clients
The Ethernet Clients tab displays details of the Ethernet and EtherNet/IP clients
connected to the PLX51-PBM.
Figure 8.20 – PLX51-PBM (Slave mode) status monitoring – Ethernet Client Statistics
TCP/ARP
The TCP/ARP tab displays details of the internal Ethernet ARP and TCP lists of the
PLX51-PBM.
Figure 8.21 – PLX51-PBM (Slave mode) status monitoring – Ethernet TCP / ARP Statistics
