PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 171 of 196

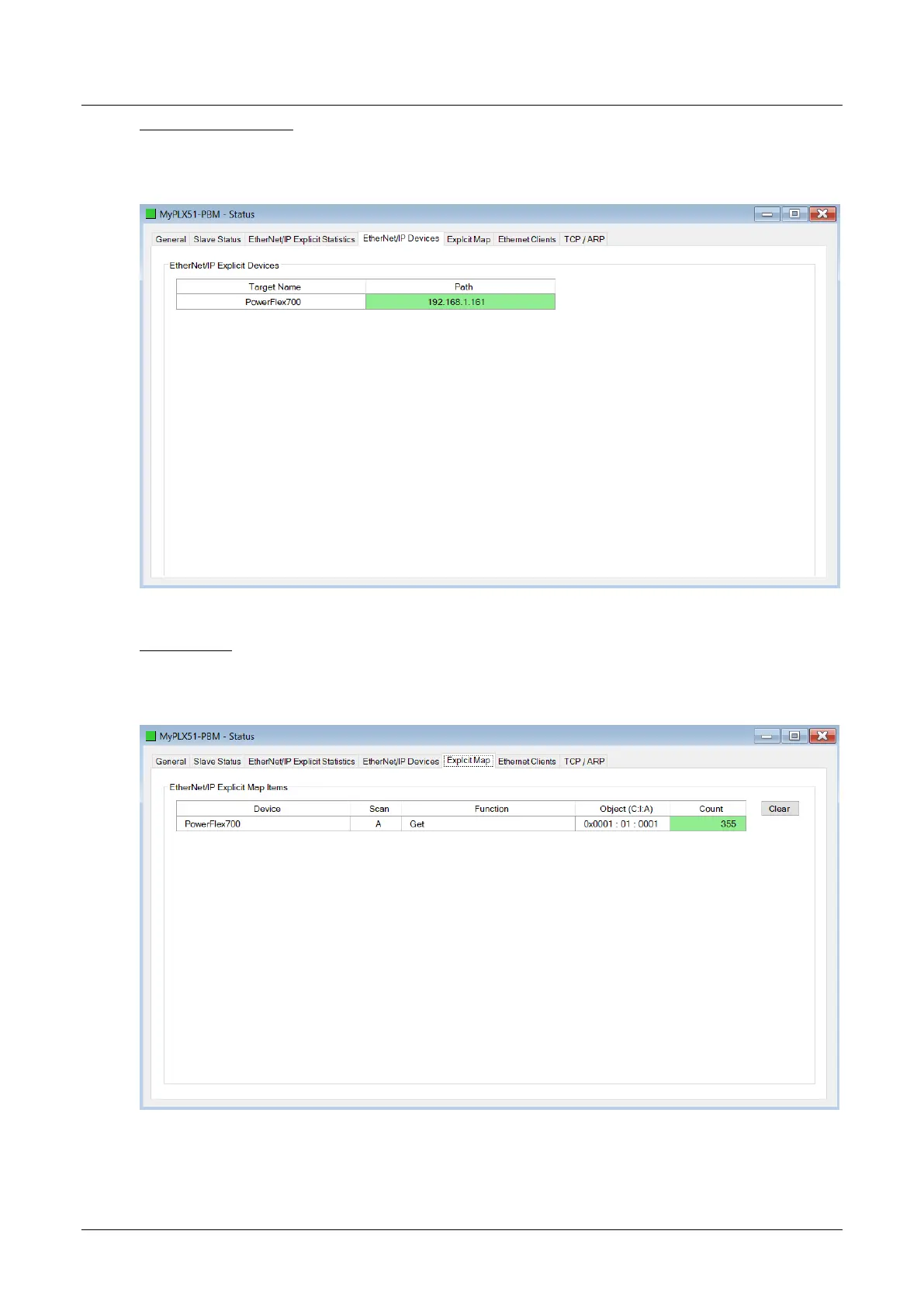

EtherNet/IP Devices
This shows all the configured EtherNet/IP devices used for Explicit EtherNet/IP
Messaging and the current communication status. Green being online and
exchanging data, Red indicating that the target device is offline.
Figure 8.18 – PLX51-PBM Slave mode status monitoring – EtherNet/IP Devices
Explicit Map
This shows all the mapped EtherNet/IP explicit messaged used for Explicit
EtherNet/IP Messaging. Each time there is a successful transaction the Count will
increase and the item will briefly go green.
Figure 8.19 – PLX51-PBM Slave mode status monitoring – Explicit Map
