EtherNet/IP Explicit Statistics
The EtherNet/IP Explicit Statistics tab displays the statistics for the combined
EtherNet/IP target devices when the Primary Interface has been set to EtherNet/IP
Explicit Messaging.

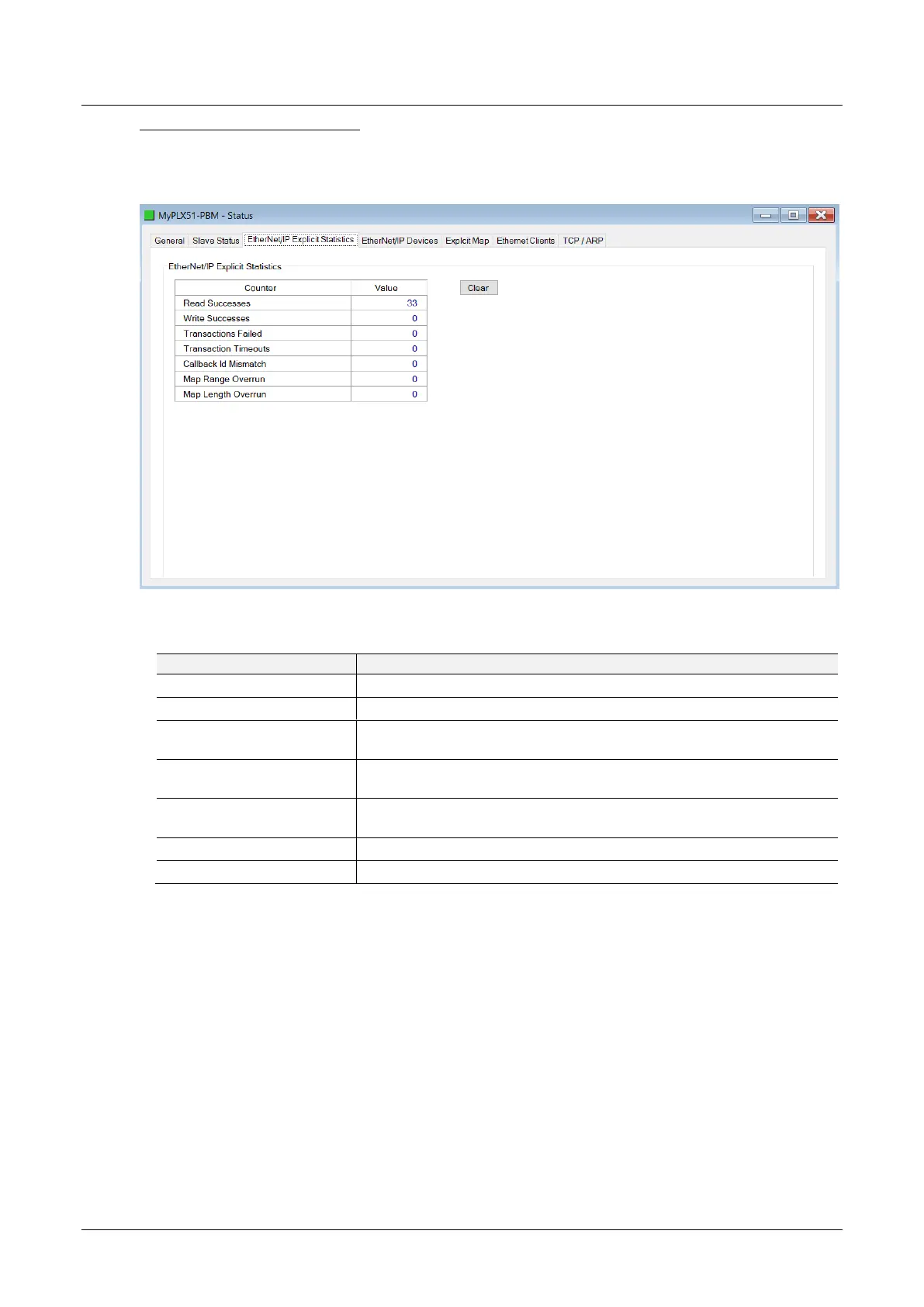

Figure 8.17 – PLX51-PBM Slave mode status monitoring – EtherNet/IP Explicit Statistics
Table 8.7 - Parameters displayed in the Status Monitoring – EtherNet/IP Explicit Statistics
Parameter
Description
Read Successes
The number of successful Explicit EtherNet/IP read message transactions.
Write Successes
The number of successful Explicit EtherNet/IP write message transactions.
Transactions Failed
The number of failed Explicit EtherNet/IP message transactions. For
example, if the target EtherNet/IP device responded with an error.
Transaction Timeouts
The number of times the target EtherNet/IP device did not respond within
the configured timeout time.
Callback Id Mismatch
The received response from the EtherNet/IP device does not match the
request sent.
Map Range Overrun
The response is larger than the upper limit of the Data Table.
Map Length Overrun
The response is larger than the configured expected response size.
