ProSoft Technology PLX51-PBM User Manual

PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 169 of 196
Modbus Statistics
The Modbus Statistics tab displays the statistics associated with the Modbus
communication and mapping. For more information, please see page 165.

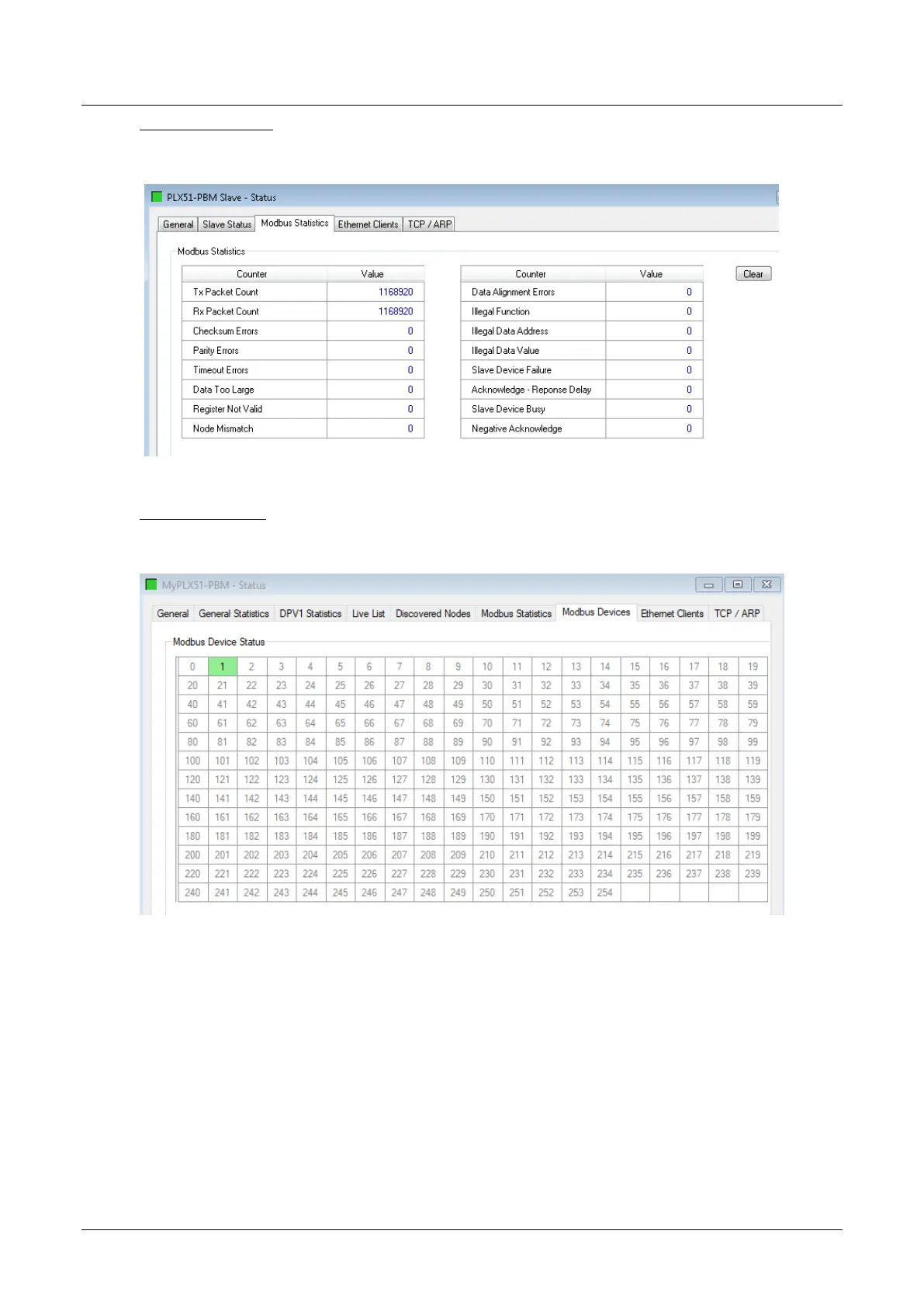

Figure 8.15 – PLX51-PBM Slave mode status monitoring – Modbus Statistics
Modbus Devices
The Modbus Devices tab displays the active Modbus Client/Server devices the
module is communicating with.
Figure 8.16 – PLX51-PBM Master mode status monitoring – Modbus Devices
