PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 20 of 196
The Target Browser automatically scans the Ethernet network for EtherNet/IP
devices.

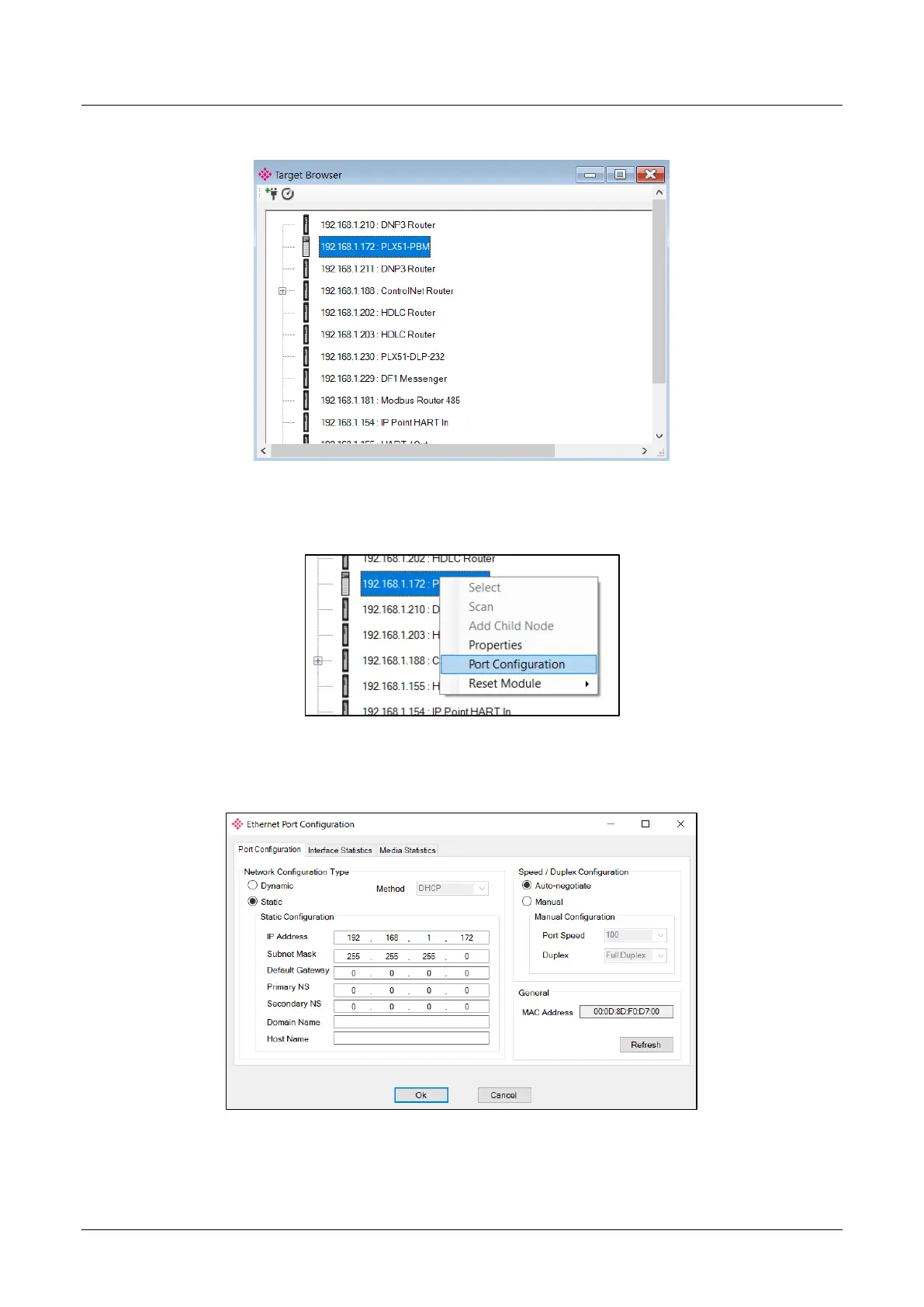

Figure 3.7. - Target Browser
Right-clicking on a device, reveals the context menu, including the Port Configuration
option.
Figure 3.8. - Selecting Port Configuration
All the relevant Ethernet port configuration parameters can be modified using the
Port Configuration window.
Figure 3.9. - Port Configuration
Alternatively, these parameters can be modified using Rockwell Automation’s RSLinx
software.
