PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 80 of 196
The required connection parameters for the PLX51-PBM module are shown below:
Table 3.22 - RSLogix class 1 connection parameters for the PLX51-PBM module
Connection Parameter
Assembly Instance
Size
Input
132
500 (8-bit)
Output
133
496 (8-bit)
Configuration
102
0 (8-bit)

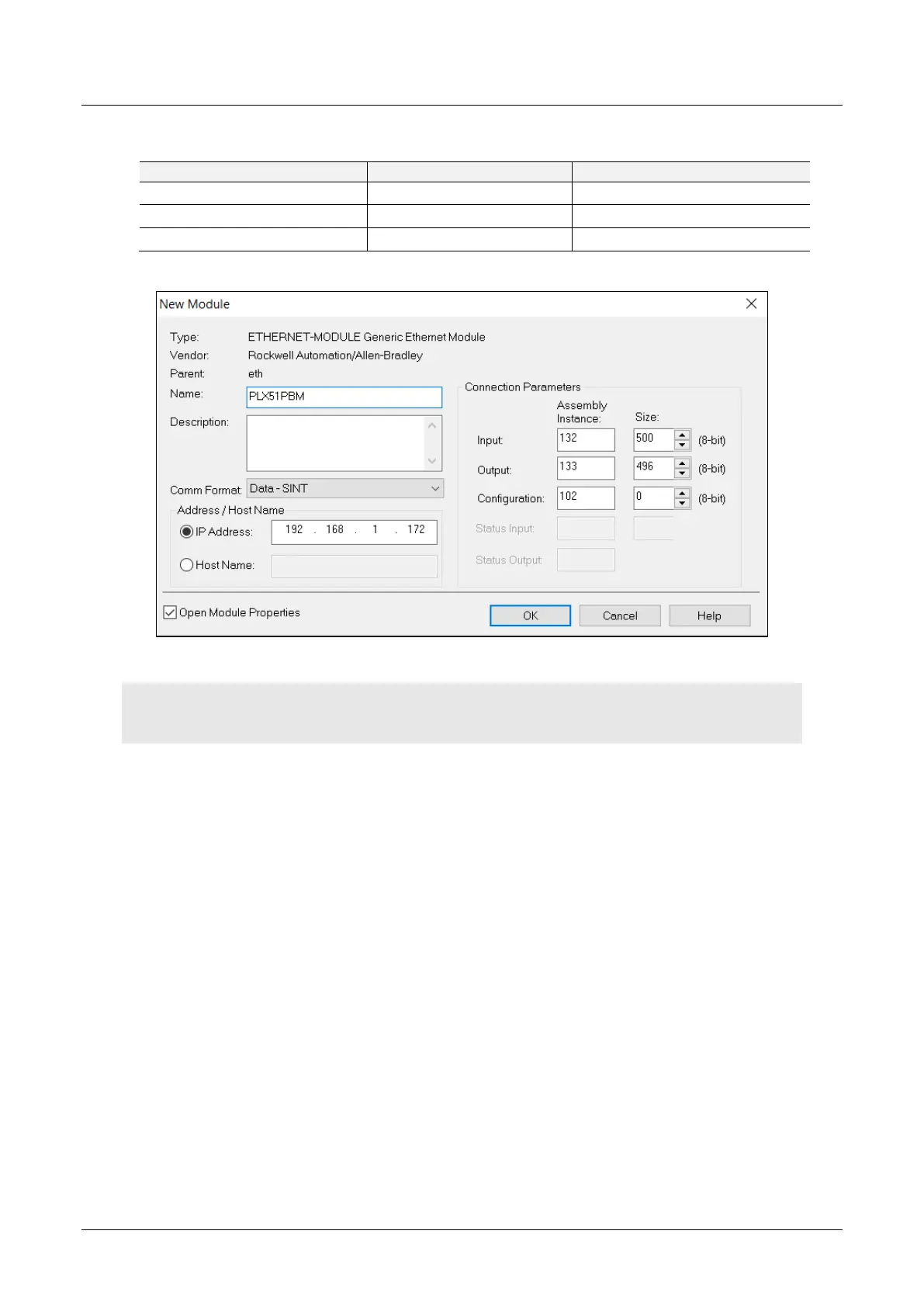

Figure 3.106 - RSLogix 5000 General module properties for PLX51-PBM module
IMPORTANT: The user will need to enter the exact connection parameters before the module will
establish a class 1 connection with the Logix controller.
Next, the user needs to add the connection requested packet interval (RPI). This is
the rate at which the input and output assemblies are exchanged. Refer to the
technical specification section in this document for further details on the limits of the
RPI.
