PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 81 of 196

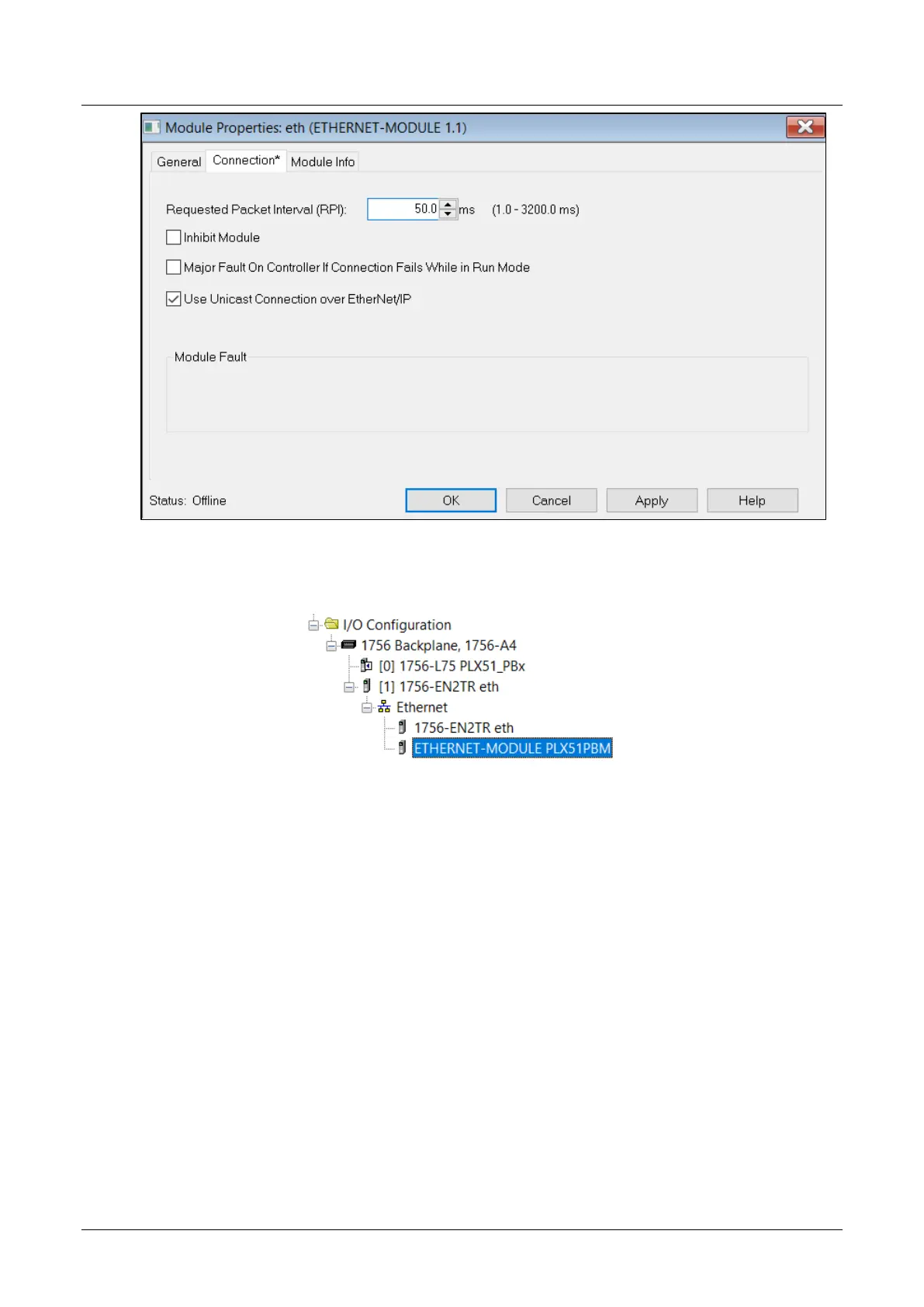

Figure 3.107 - Connection module properties in RSLogix 5000
Once the module has been added to the RSLogix 5000 I/O tree the Logix controller
will be ready to connect to the PLX51-PBM with a Class 1 connection.
Figure 3.108 – RSLogix 5000 I/O module tree
