PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 85 of 196

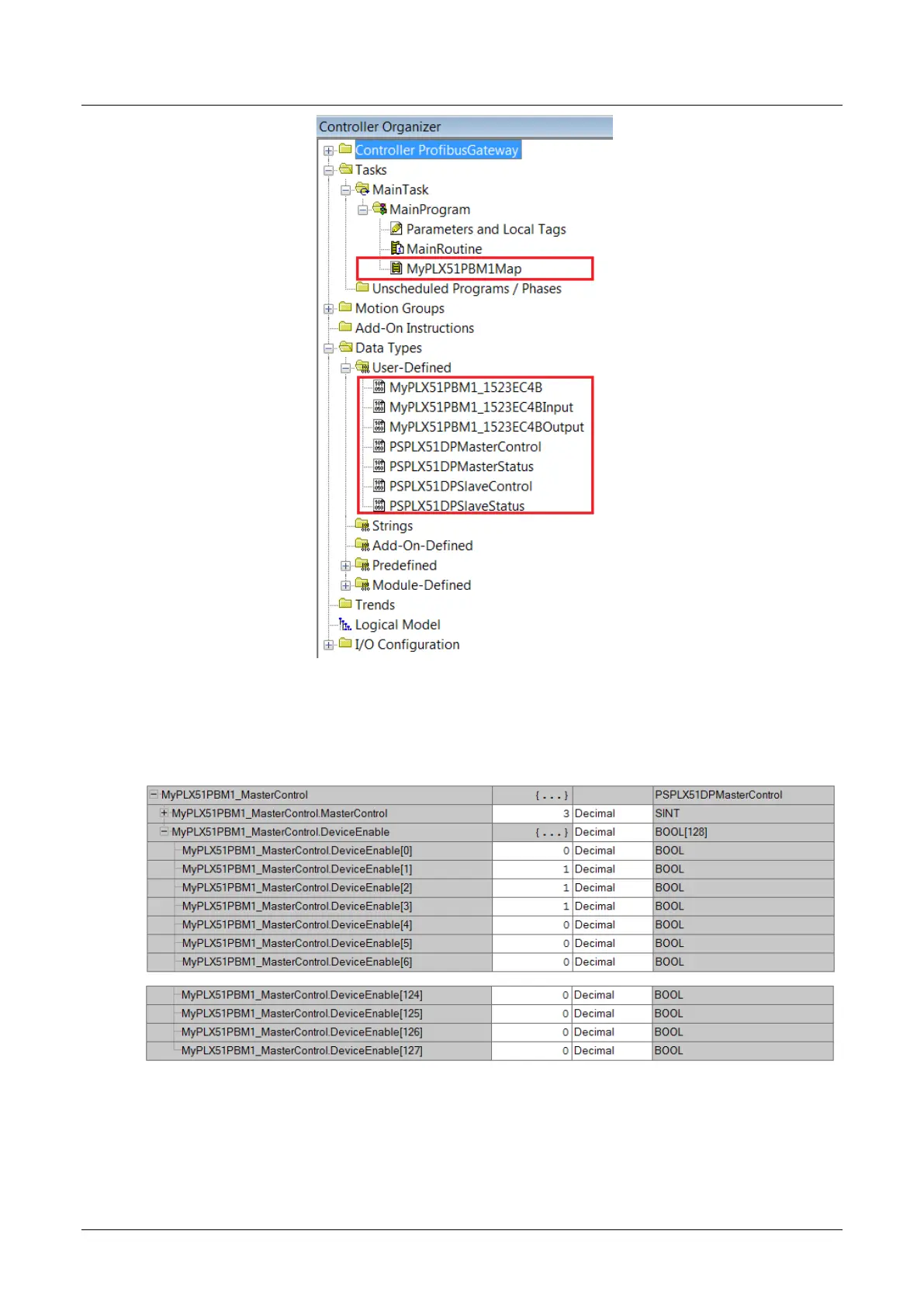

Figure 3.115 – Imported Logix Objects
A number of PLX51 specific (UDT) tags are created.
The Master Control tag is used to set the PROFIBUS Mode and to Enable the
individual Slave Devices.
Figure 3.116 – Master Control tag
