The Master Status tag displays the status of the PROFIBUS Master, including arrays
to show the LiveList, Data Exchange Active, Alarm and Diagnostic pending status of
each slave device.

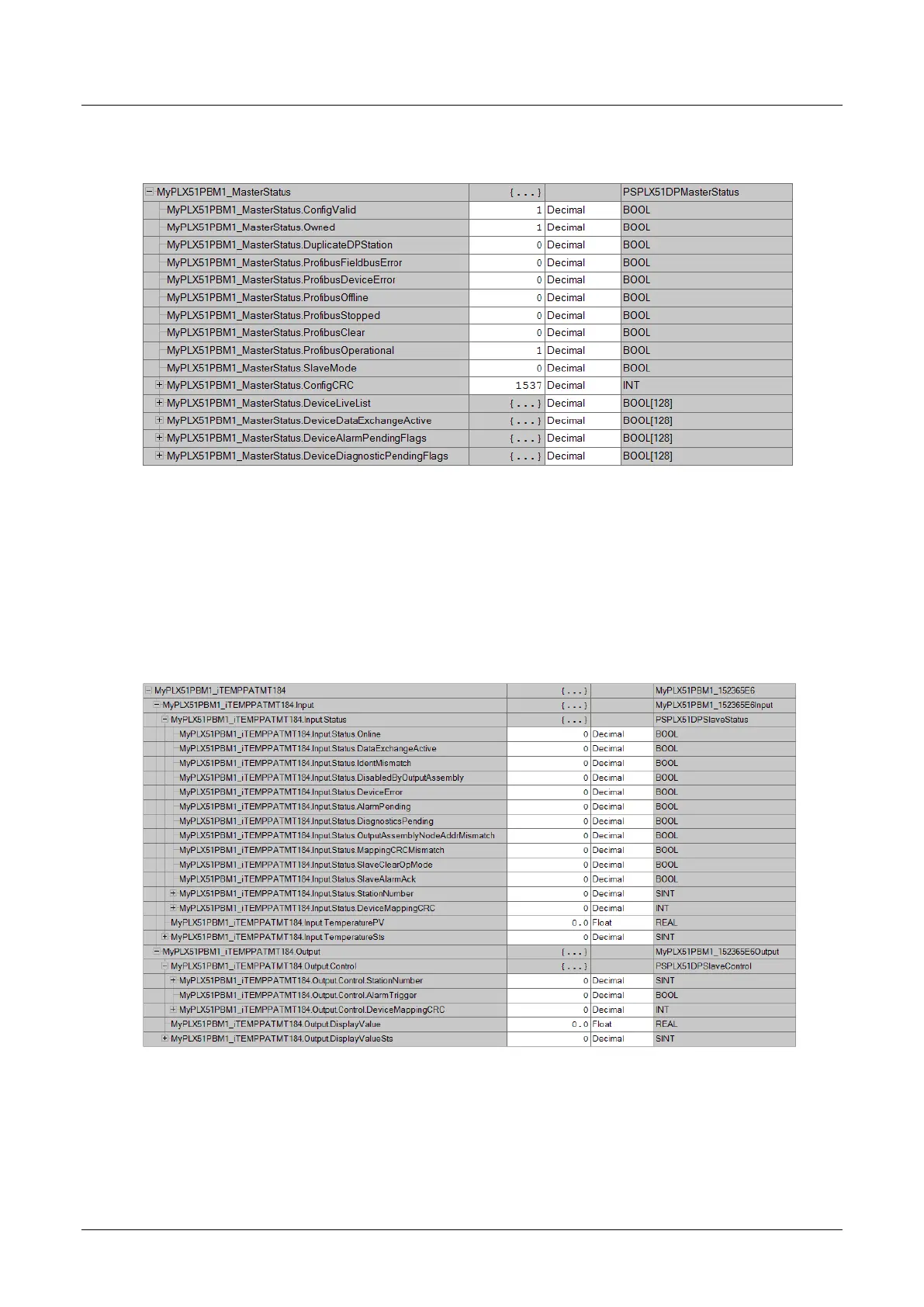

Figure 3.117 – Master Status tag
There is also a tag created for each configured slave device. The structure of which
comprises the following:
 Input Status - Status related to slave device
 Input Data – As specified in the Input Data Points in the Slot configuration
 Output Control – Used to trigger alarms
 Output Data – As specified in the Output Data Points in the Slot configuration
Figure 3.118 – Slave Device-Specific tag
