PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 90 of 196

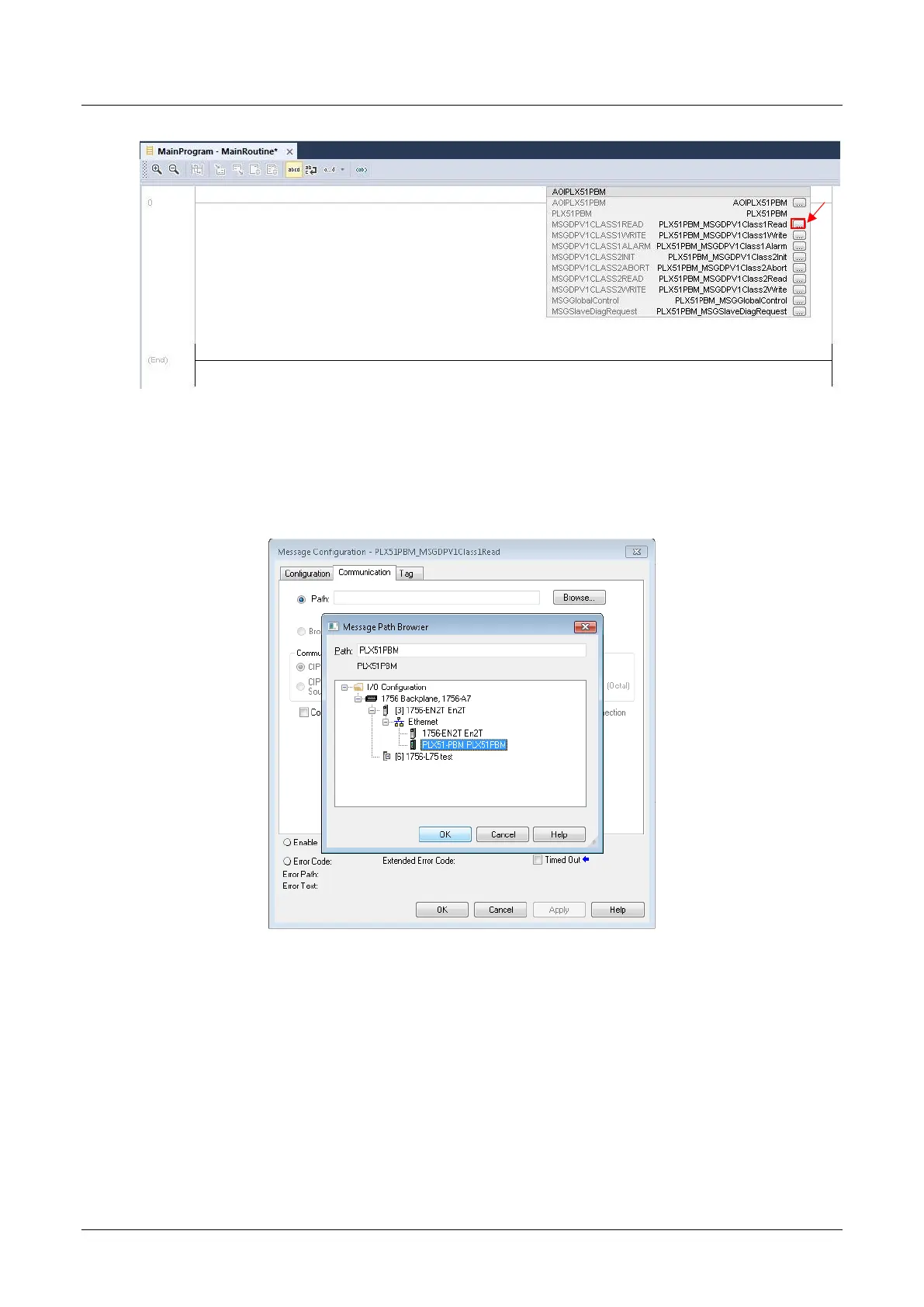

7 Click the Configuration Dialog box of one of the Ethernet/IP CIP messages.
3.106 – Configuration Dialog
8 The Message Configuration window of the CIP message opens.
9 To ensure that the path of communication is correct, go to the Communication
tab and click the BROWSE option of the Path parameter. Click the module within
the I/O Configuration list, then click OK.
3.107 – Message Path Browser
10 Click OK in the Message Configuration window. Repeat for every CIP message
provided within the AOI.
