PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 91 of 196

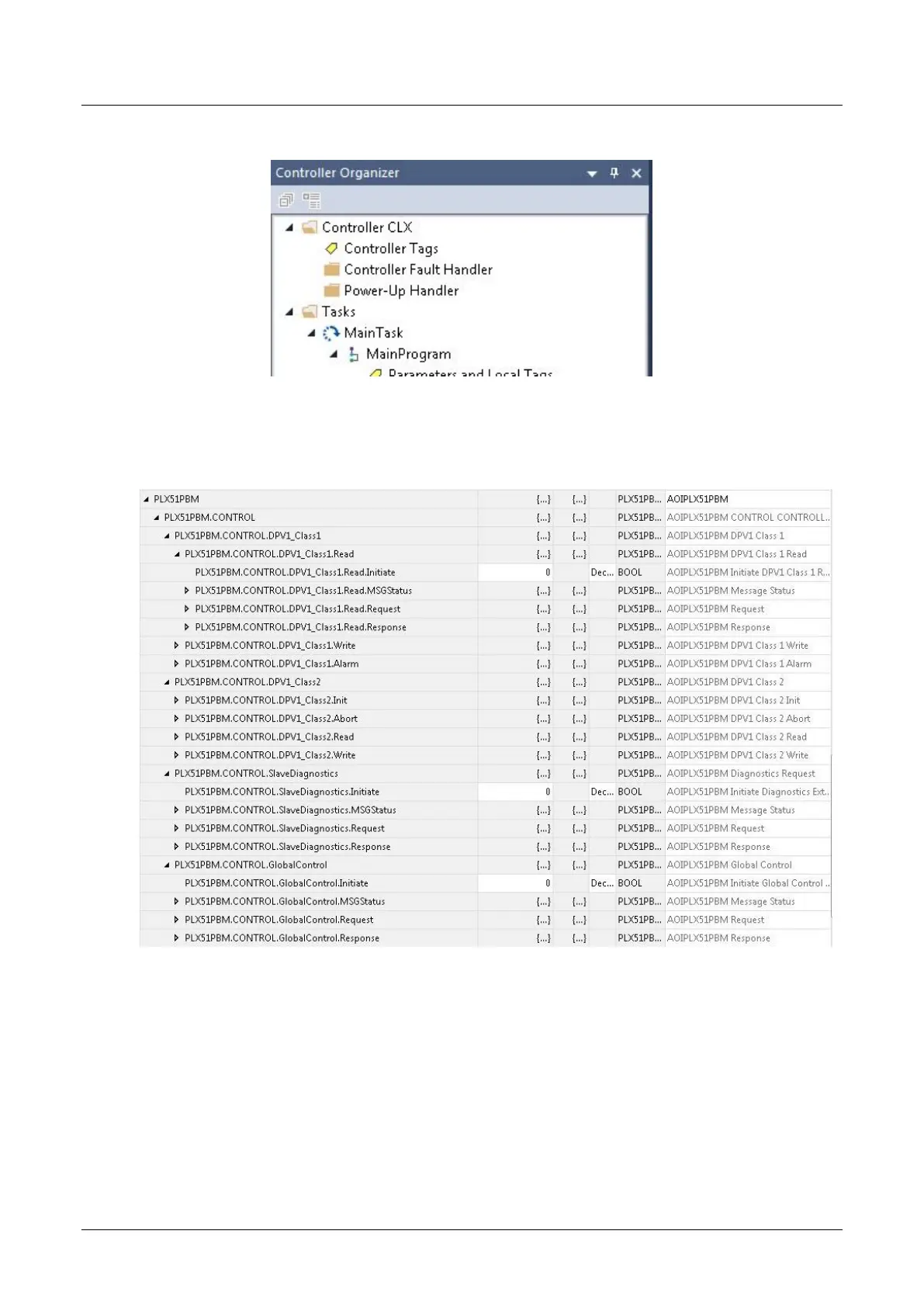

11 Navigate to the Controller Organizer window. Double click on the Controller Tags
folder.
3.108 – Controller Tags Folder
12 The PLX51-PBM controller tags have been imported along with the Add-On
Instruction. The PLX51PBM.CONTROL UDT contains the tags that control all of
the acyclic messaging functions.
3.109 – PLX51PBM.CONTROL Controller Tags
