Page 14
Fascia Mount

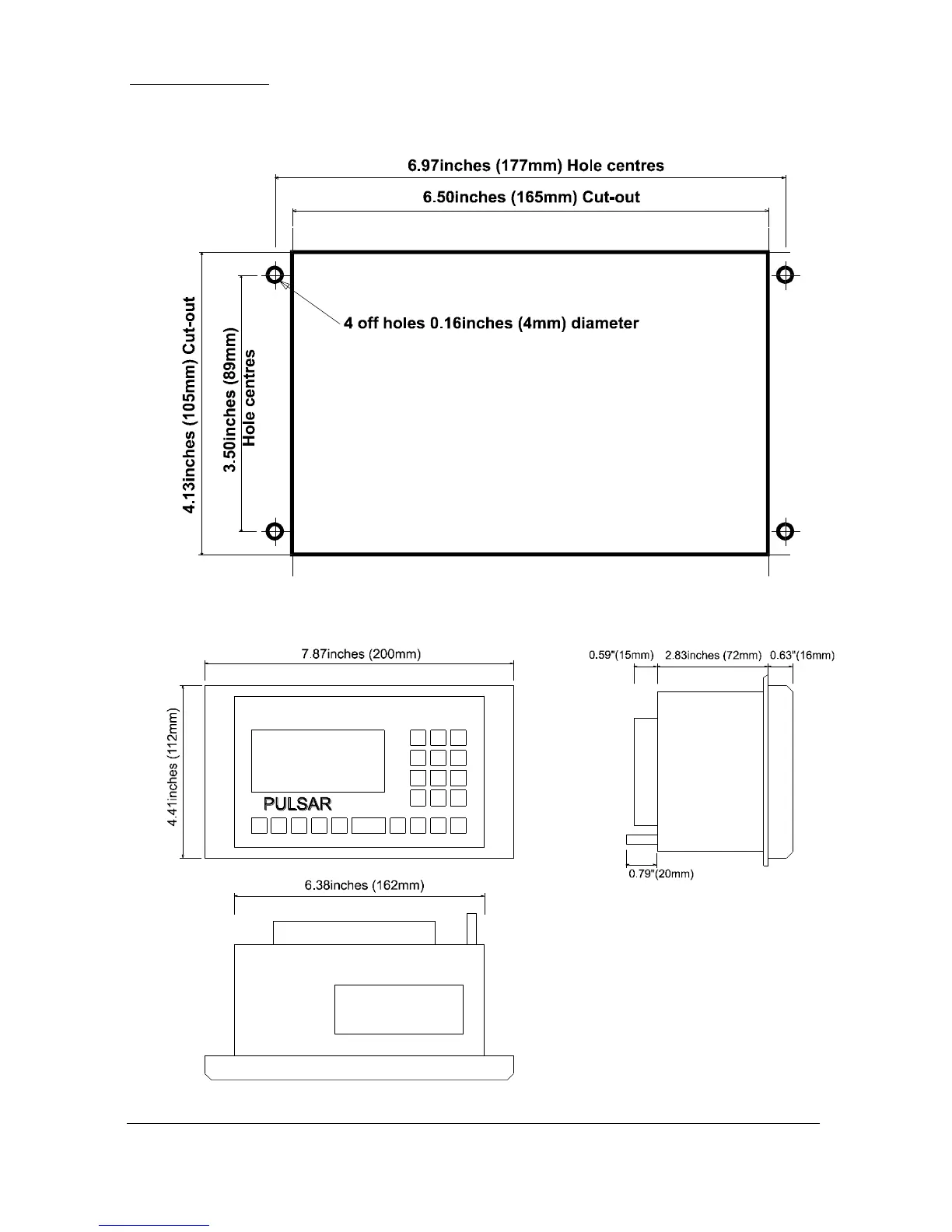

The Fascia mount Ultra Twin should be installed by cutting a hole in the
panel, as detailed below, and securing the unit with the fixings supplied.
The full dimensions of the Fascia mount enclosure are as shown below.
