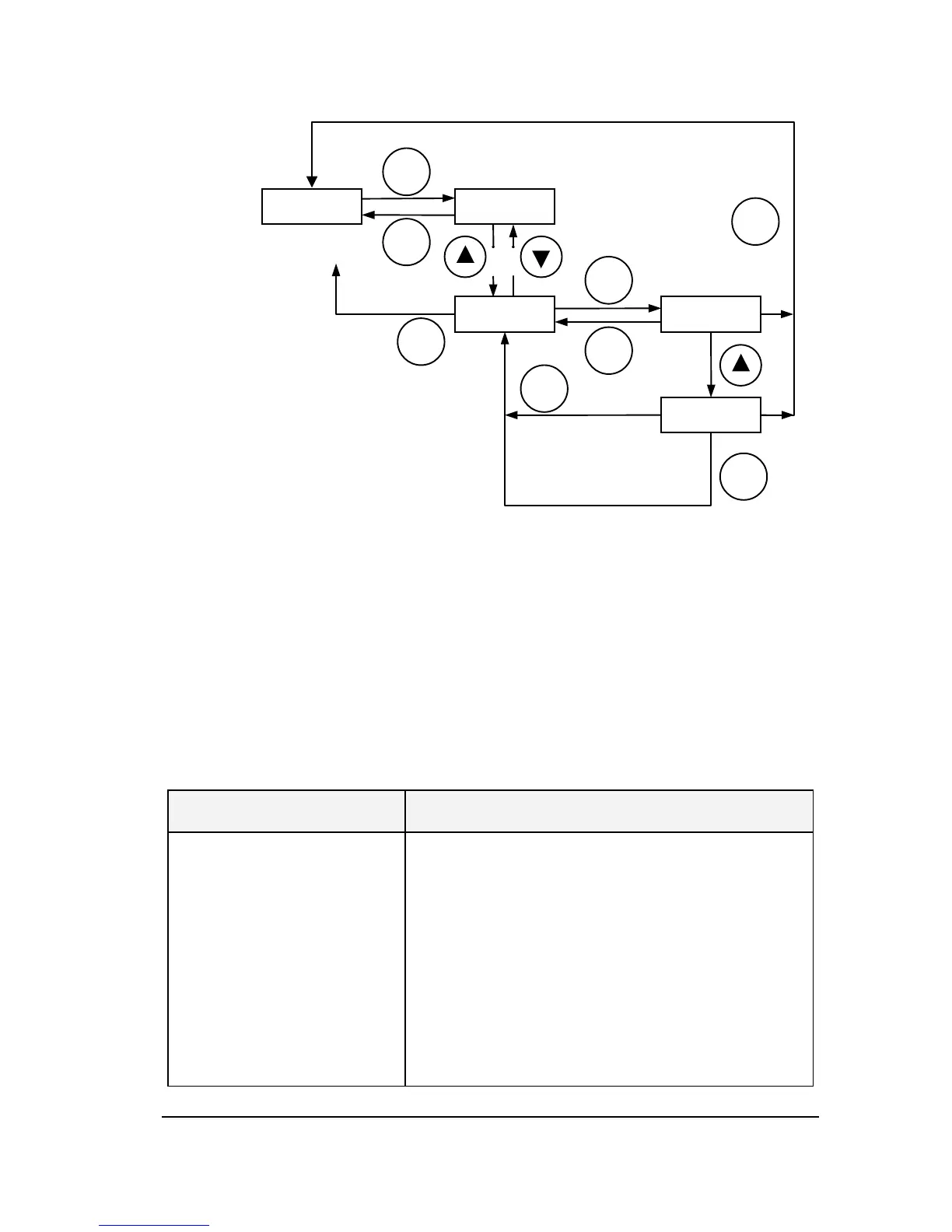

Figure 1.6 Parameter verifying mode navigation
JOG
Under the powering-on mode, when f700=1, press the JOG key then enter the jog state.
jog represents forward JOG and –JOG represents reverse jog. Switch between
forward/reverse jog can be realized through UP/DOWN keys on the keyboard panel.
Switching on and confirmation of display status
Before switching on the inverter, please do confirm the following items.
Table 1.2 Items to be confirmed prior to switching on the inverter
Item Description
Confirmation of input power
supply voltage
Please confirm if the power suppy is correctly
connected
Please confirm if the power supply input terminals
R/L1, S/L2 and T/L3 are properly connected ( Single
phase supply connects any two of the three
terminals R, S, T ).
Please confirm whether the inverter and the motor
are correctly grounded.
Parameter check mode
To Next Page
