Qirod QD100 Series User Manual

43
NO. Parameter Name Setting Range
Default
f315 Output terminal function A of T1 0~255 40

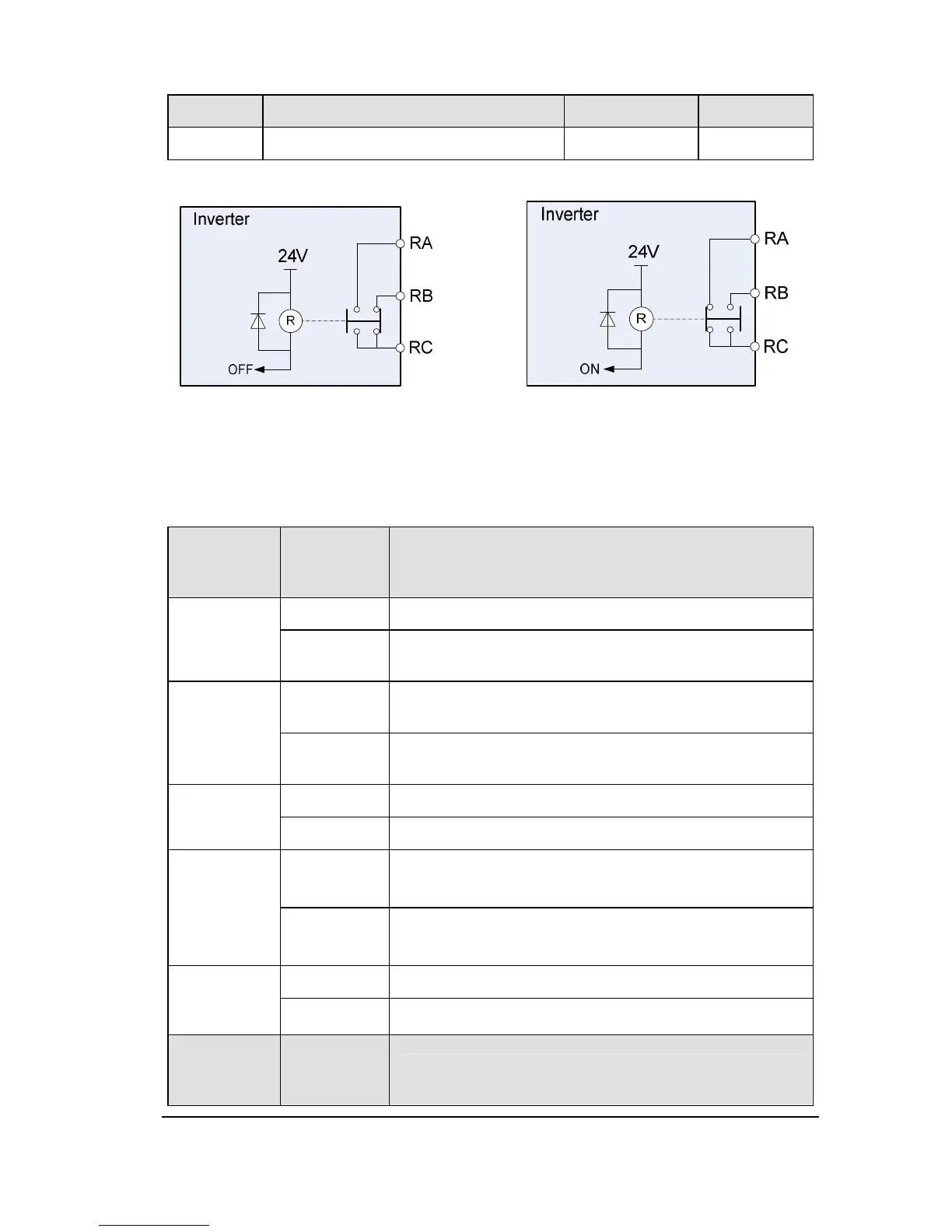

a) Relay in OFF status b) Relay in ON status
Figure 2.10 Description of relay status
Table 2.3 Description of output terminal function
Output
terminal
function NO.
Output
Status
Description
OFF Output frequency ≤ lower limit frequency setting of f009
0
ON
Output frequency > lower limit frequency setting of
f009
OFF
Output frequency < upper limit frequency setting of
f008
2
ON
Output frequency = upper limit frequency setting of
f008
OFF Output frequency < setting of f337
4
ON Output frequency ≥setting of f337
OFF
Output frequency > (set frequency + f339), or < (set
frequency - f339)
6
ON
(frequency - f339) < output frequency < (set frequency
+ f339)
OFF
Output frequency >(f338+f339), or < (f338-f339)
8
ON (f338-f339)
＜
Output frequency
＜
(f338+f339)
Output
terminal
function NO.
Output
Status
Description
