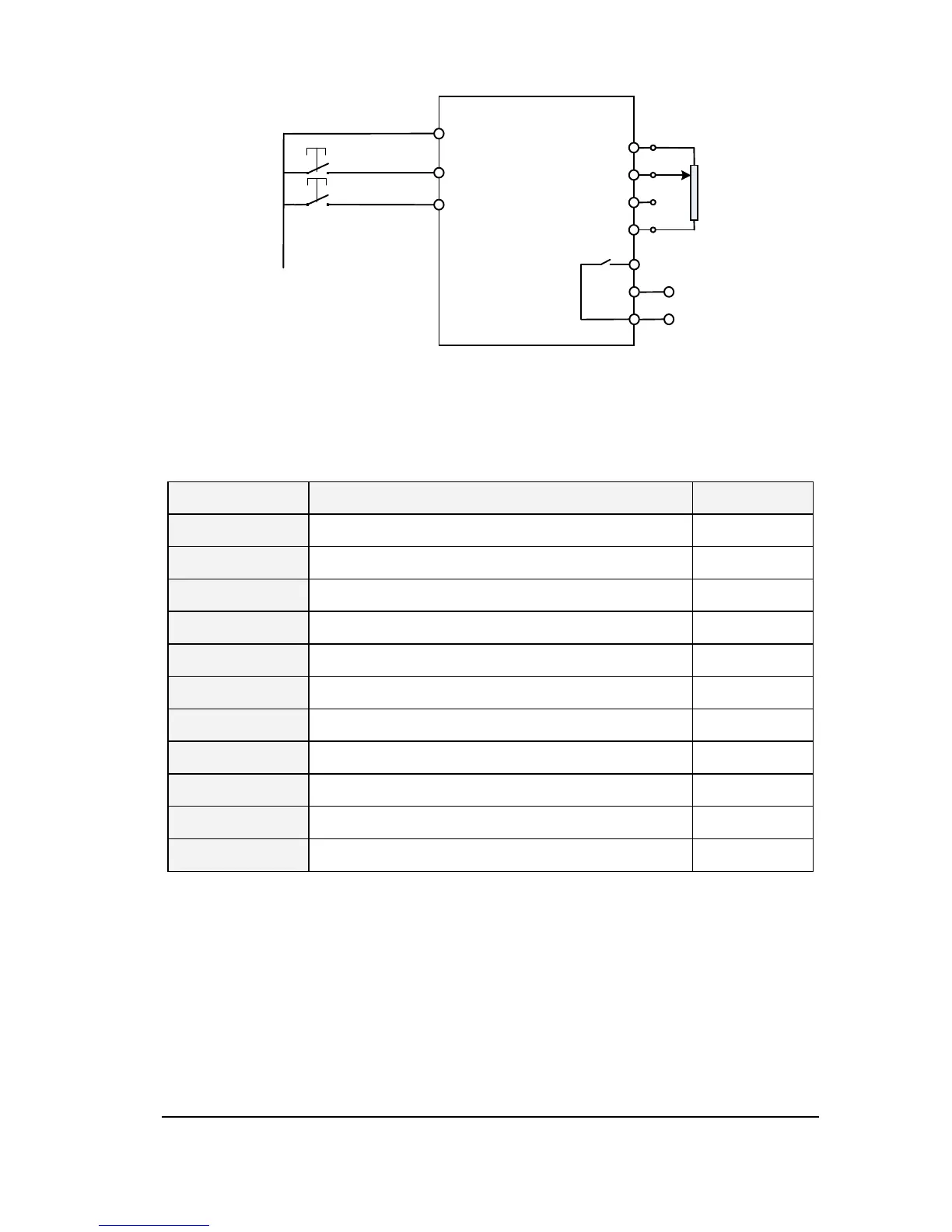

13
Figure 1.9 Example of wiring for 4-20mA control running
Table 1.5 Parameter configuration of Three-wire control running(Negative logic, Free
stop)
Code Parameter Set value
f002 Selection of run command 0
f003 Selection of frequency command selection 1
f300 AI1 input function (analog or logic selection) 0
f301 LI1 logic input function 2
f302 LI2 logic input function 3
f303 LI3 logic input function 34
f305 Logic input mode setting 0
f306 Logic input type selection 1
f309 Forced- effective Logic input function selection 1
f310 Forced- effective Logic input function selection 2
30
f522 Prohibit motor reverse 0
Example 4: UP/DOWN acceleration and deceleration(Negative logic)
L
I
1
L
I
2
0
V
AI
1
10
V
AI
2
T
1
A
T
1
C
T
1
B
AC Drive
0
V
L
I
3
L
I
4
Fault reset
Forward
Reverse
