79
e.g., output frequency = 50Hz, if f604=30.0, Value displayed on the panel is 1500.
Note: This parameter displays the inverter output frequency as the value obtained by
multiplying it by a positive number. This does not mean that the actual motor speed or
line speed is indicated with accuracy.
NO. Parameter Name Setting Range
Default
f605 Factory reserved 0~1 0
0: Frequency can be converted to any unit.
1: Frequency can not be converted to unit display.
Note: When f605=1, f604 disabled.
NO. Parameter Name Setting Range
Default
f606 Inclination characteristic of free unit display
0~1 1
0: Negative inclination (downward slope)
1: Positive inclination (upward slope)
NO. Parameter Name Setting Range Default
f607 Bias of free unit display 0.00Hz ~f007 0.00
70.0
0
f 6 0 6 =1
f 6 0 4
Value
displayed
20.0
50Hz
f 6 0 7 =20.0
70.0
0
f 6 0 6 =0
f 6 0 4
Value
displayed
Operation
frequency
50Hz
f 6 0 7 =70.0
Operation
frequency

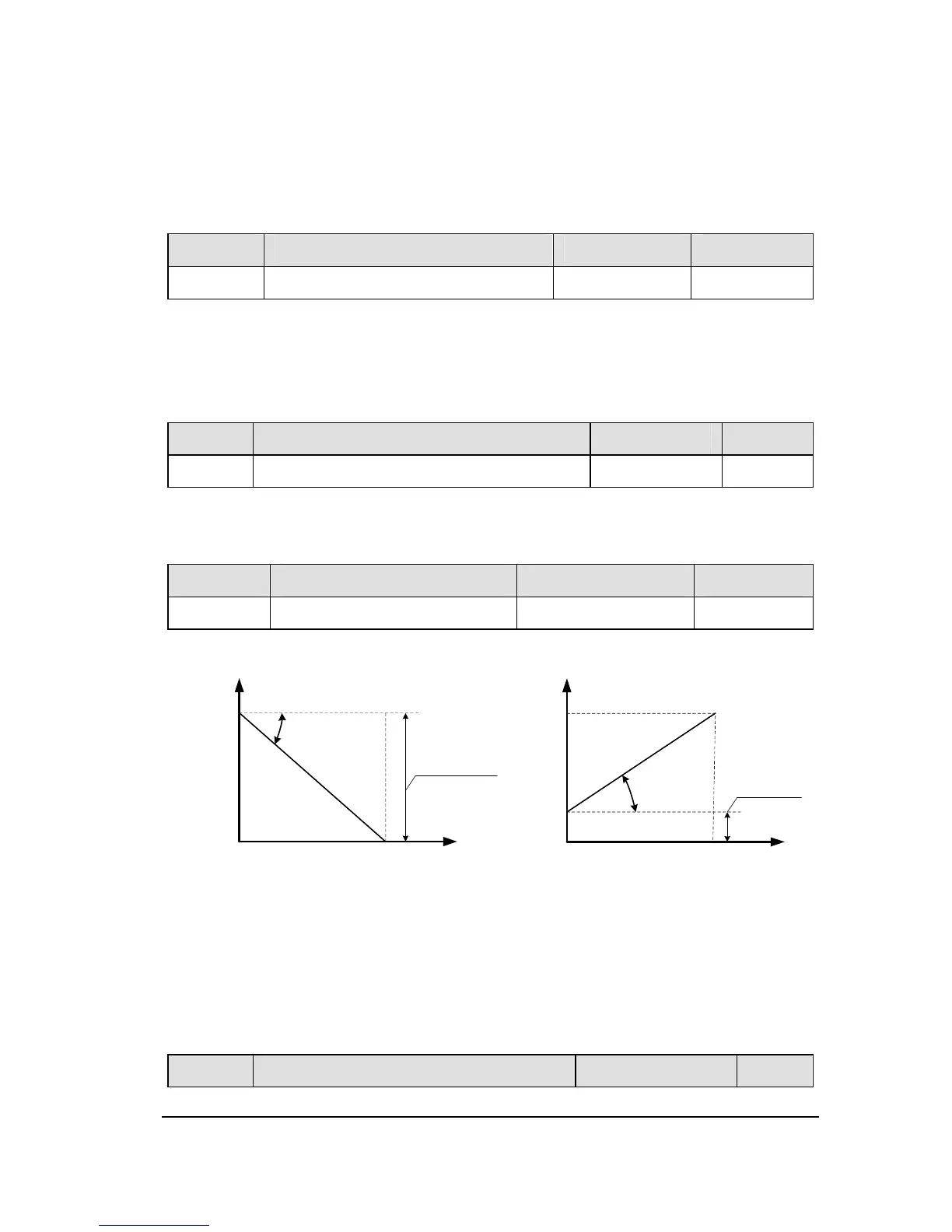

Figure 2.33 Description of free unit
If f604 is not set as 0.00, value displayed is obtained as follows:
Whenf606=0, value displayed =f604x (f607 – actual frequency value)
When f606=1, value displayed =f604x (f607 + actual frequency value)
