f830 PID setting of keypad 0~100% 0.0
f830=100% can make the sensor output the maximum value.
The 100% standard value of f830 is the measurement range of sensor. If the
measurement range of pressure sensor is 0.0~1.6Mpa for example, set f830 =100%
means that pressure setting is 1.6Mpa.
Note 1: When f900=0, f830 is not effective.
Note 2:f830 and f916 are completely equivalent. One of them changes, then another will
be automatically updated.
2.10 Process PID parameter group
PID control is a common used method in process control, such as flow, pressure and
temperature control.

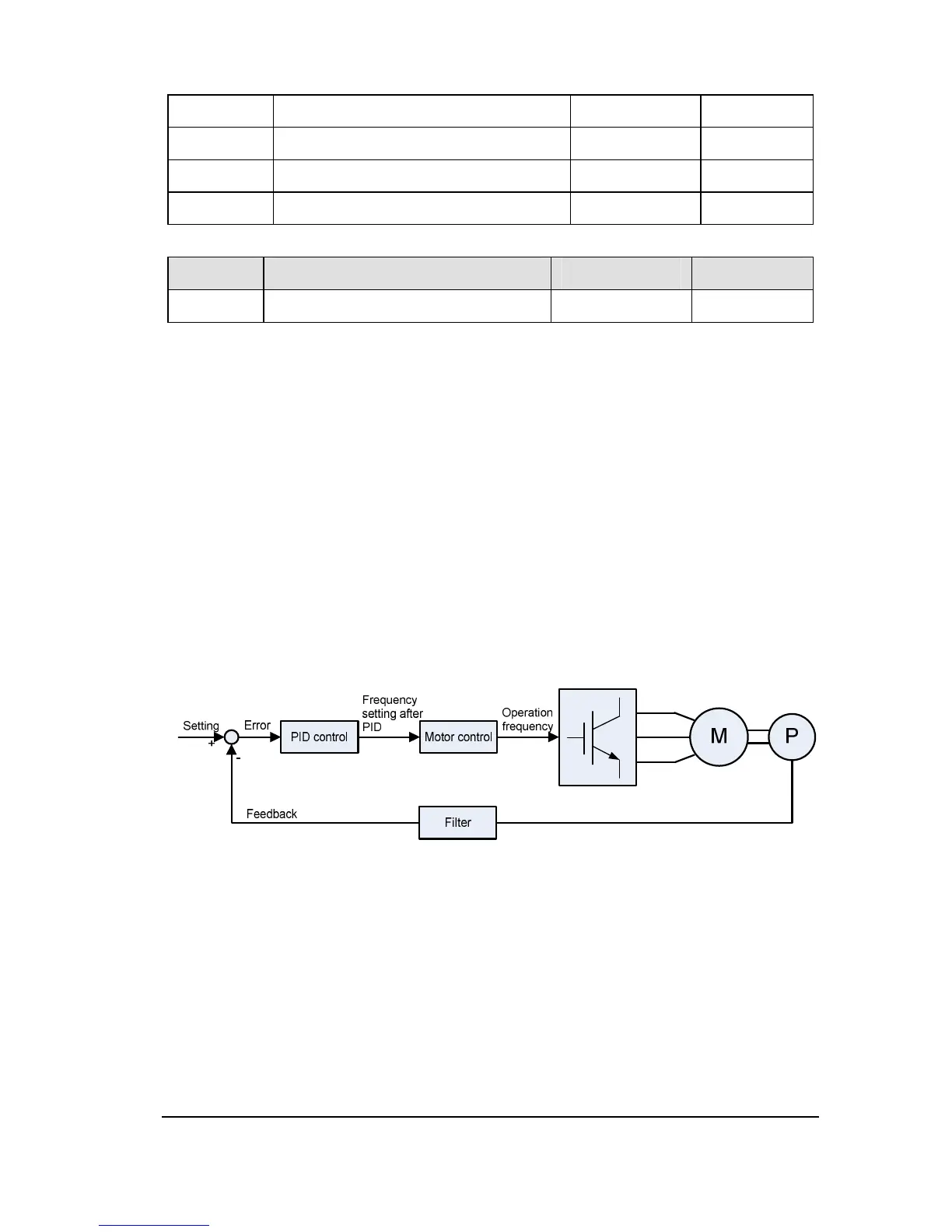

Figure 2.36 Block diagram of PID process control
f900~f908 define built-in process PID control function parameters of the inverter. The
block diagram of process PID control function is shown as below:
