Qirod QD100 Series - Frequency Command Agreement Detection Range; Logic OutputPulse Train Output Selection (LO-CLO); Pulse Train Output Function Selection (lo - CLO)

51

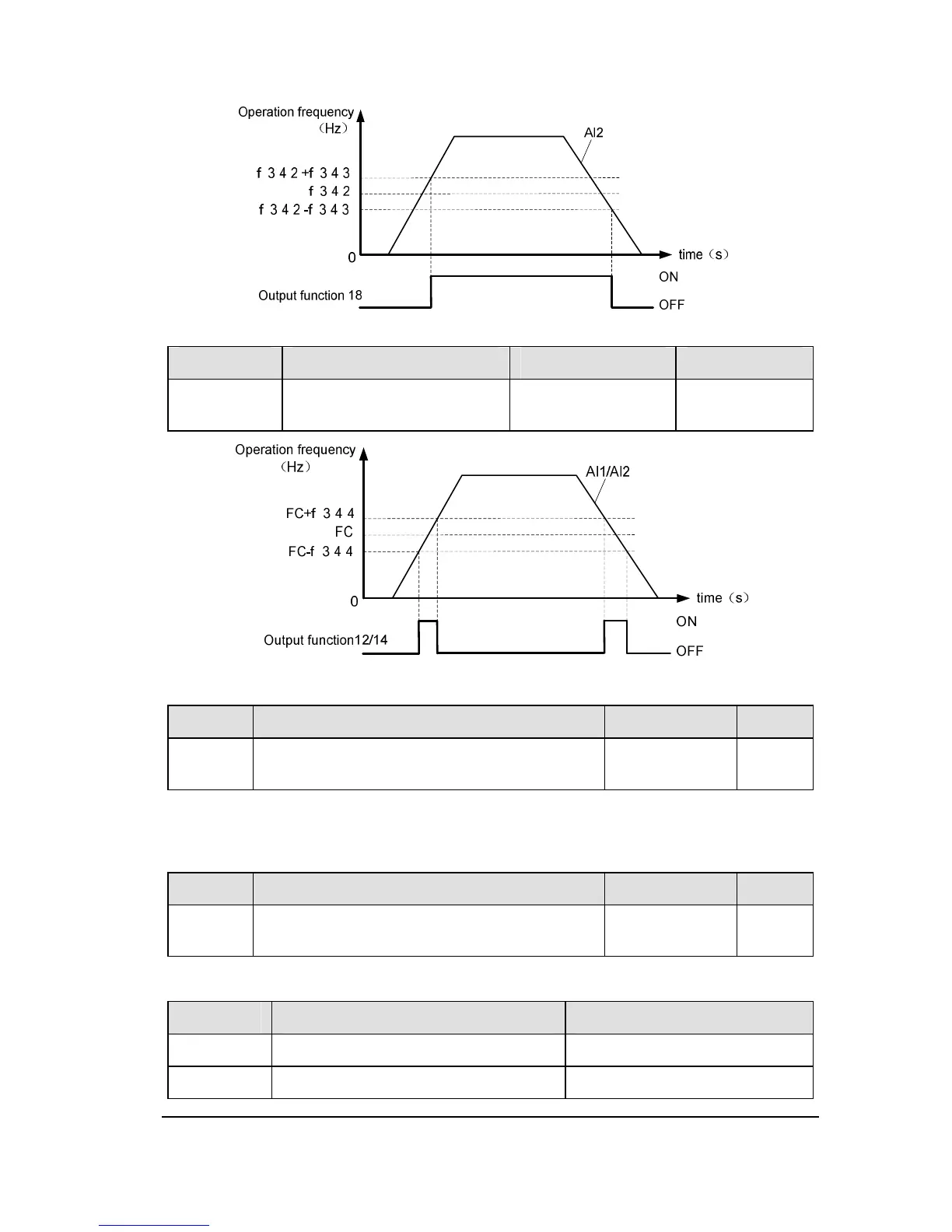

Figure 2.16 Description of AI2 input reach output
NO. Parameter Name Setting Range Default
f344
Frequency command
agreement detection range
0.0 Hz ~f007 2.5
Figure 2.17 Description Frequency command agreement detection output
NO. Parameter Name Setting Range
Default
f345
Logic output/pulse train output selection (LO-
CLO)
0~1 0
0: Logic output
1: Pulse train output
NO. Parameter Name Setting Range
Default
f346
Pulse train output function selection (LO -
CLO)
0~14 0
Table2.4 Pulse train output function selection
f346 Description Reference of max. value
0 Output frequency f007
1 Output current
150% of inverter rated current
