Qirod QD100 Series User Manual

98
NO. Parameter Name Setting Range
Default
f916 PID setting of keypad 0~100% 0
See f830.
Note: f916 and f830 are the same parameter internally.

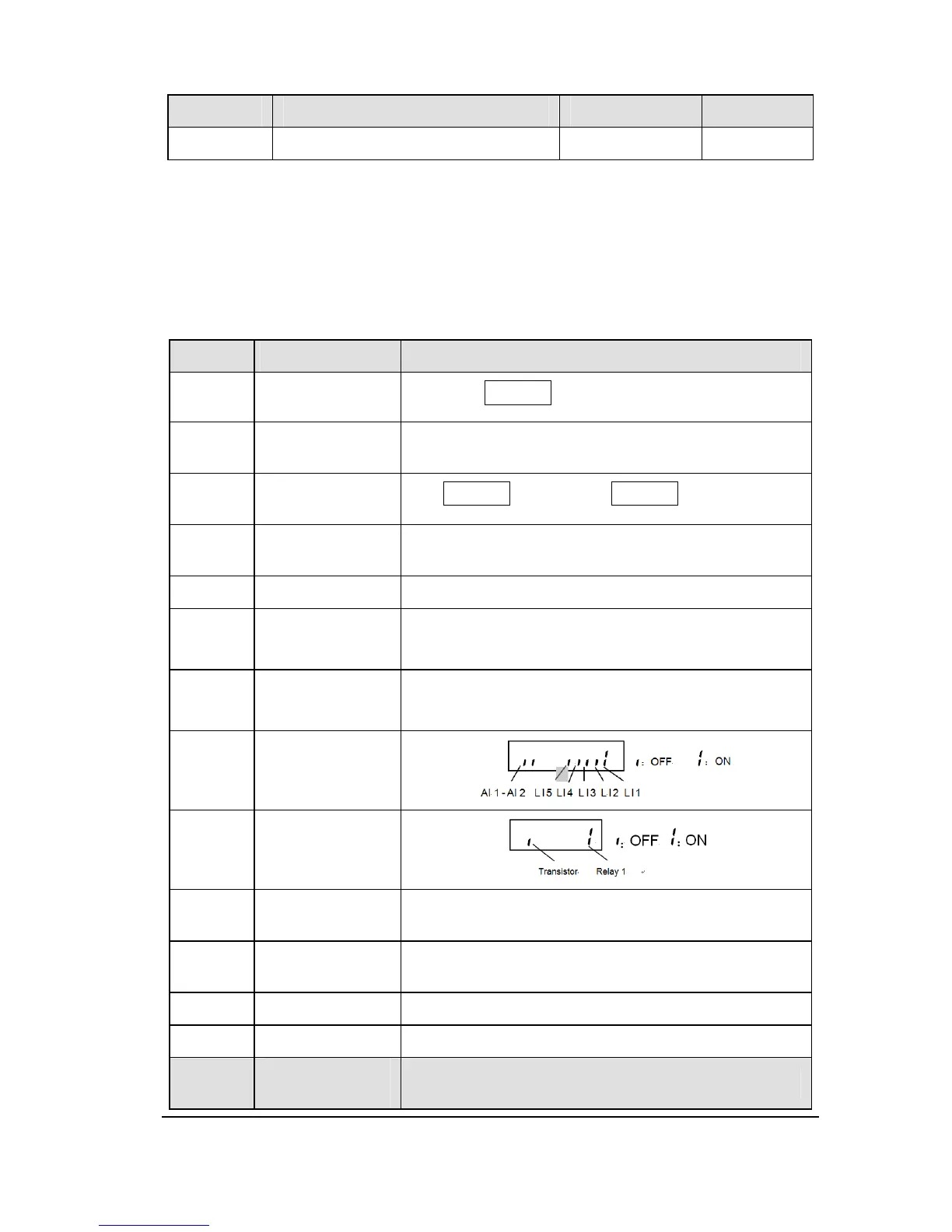

2.11 Monitoring function parameter group
Table 2.12 Status monitor mode
NO. Parameter Name
Description
u000 CPU1 Version
E.g: , G-type, v= g; P-type, v= p
；
u001
Operation
frequency
Value is displayed in Hz/free unit. See f604.
u002
Direction of
rotation
Forward run, Reverse run.
u003
frequency
command value
Value is displayed in Hz/free unit. See f604.
u004 load current The inverter output current (%/A) is displayed.
u005
input voltage
(AC RMS)
The inverter input voltage (200V) is displayed.
u006
output voltage
(AC RMS)
The inverter output voltage command (200V) is
displayed.
u007
Input terminal
status indicated
u008
Output terminal
status indicated
u009
cumulative
operation time
(0.01=1 hour, 1.00=100 hours)
u010 Output speed
Displays the motor speed ( min-1) by calculating with
output frequency and pole numbers.
u011 Rated current The rated current of the inverter (A) is displayed.
u012 Torque current
The torque current (%/A) is displayed.
NO.
Parameter
Name
Description
v
100
0
1
