1.4.2 Remote control mode
Under remote control mode, the command source and frequency setting source of the
inverter are set through parameters f002 and f003 respectively. The command source
and frequency setting source can be combined in any way. For example, when f002= 1,
f003= 3, the control effect of the inveter is the same as under the local control mode.
Example 1: Two-wire control running

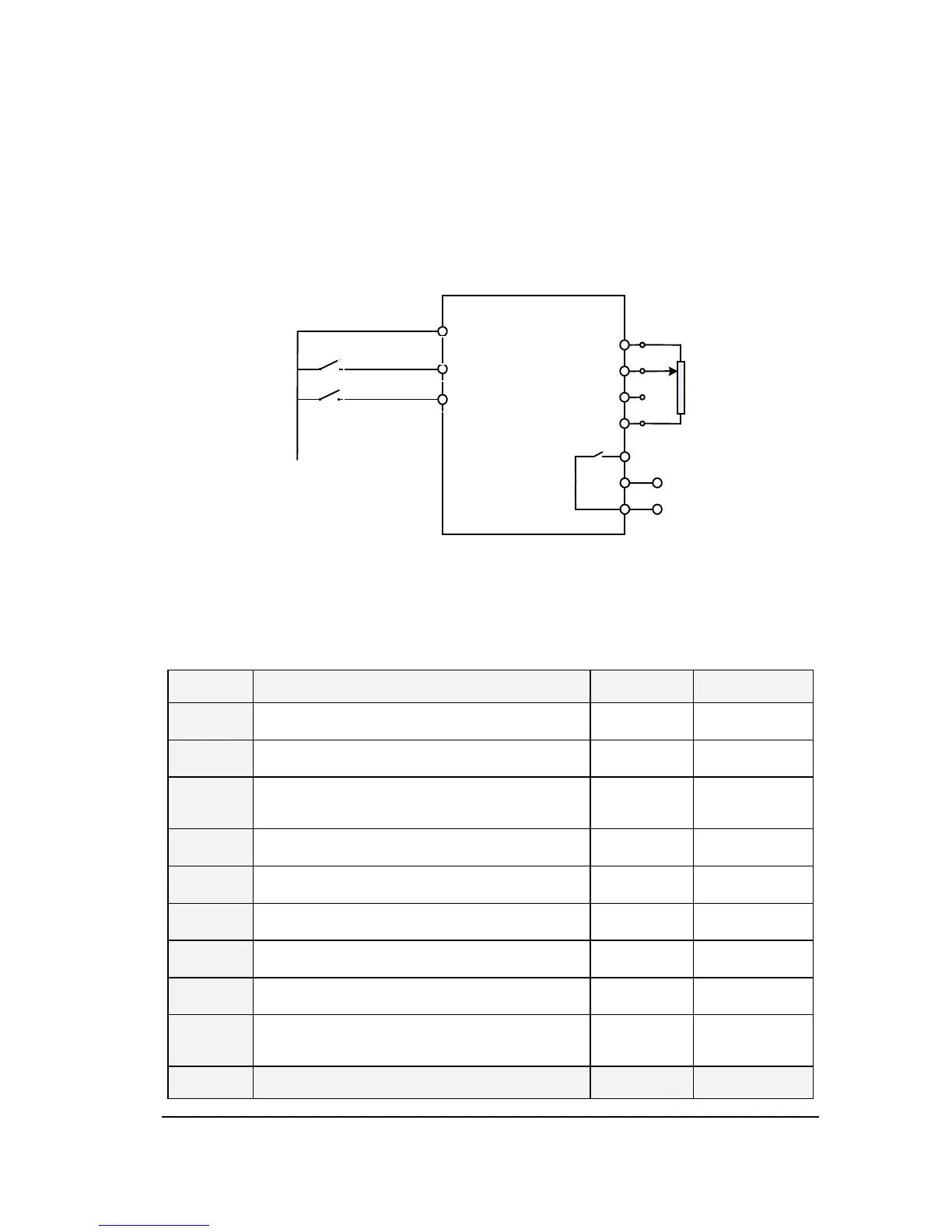

Figure 1.7 Example of wiring for two-wire control running
Table 1.3 Parameter configuration of two-wire control running
Code Parameter Setpoint
1
1
f300 AI1 input function (analog or logic
selection)
0
0
f301 L1 logic input function 2
62
f302 L2 logic input function 3
63
f303 L3 logic input function 10
10
f305 Logic input mode setting
0 0
f306 Logic input type selection
1 1
f309
Forced- effective Logic input function
selection
1
0
Code Parameter Setpoint
