Operation frequency
(Hz)
Time (s)
0
Frequency command
(A) (B) (C) (D) (E) (F)
f 5 1 3
f 5 1 4

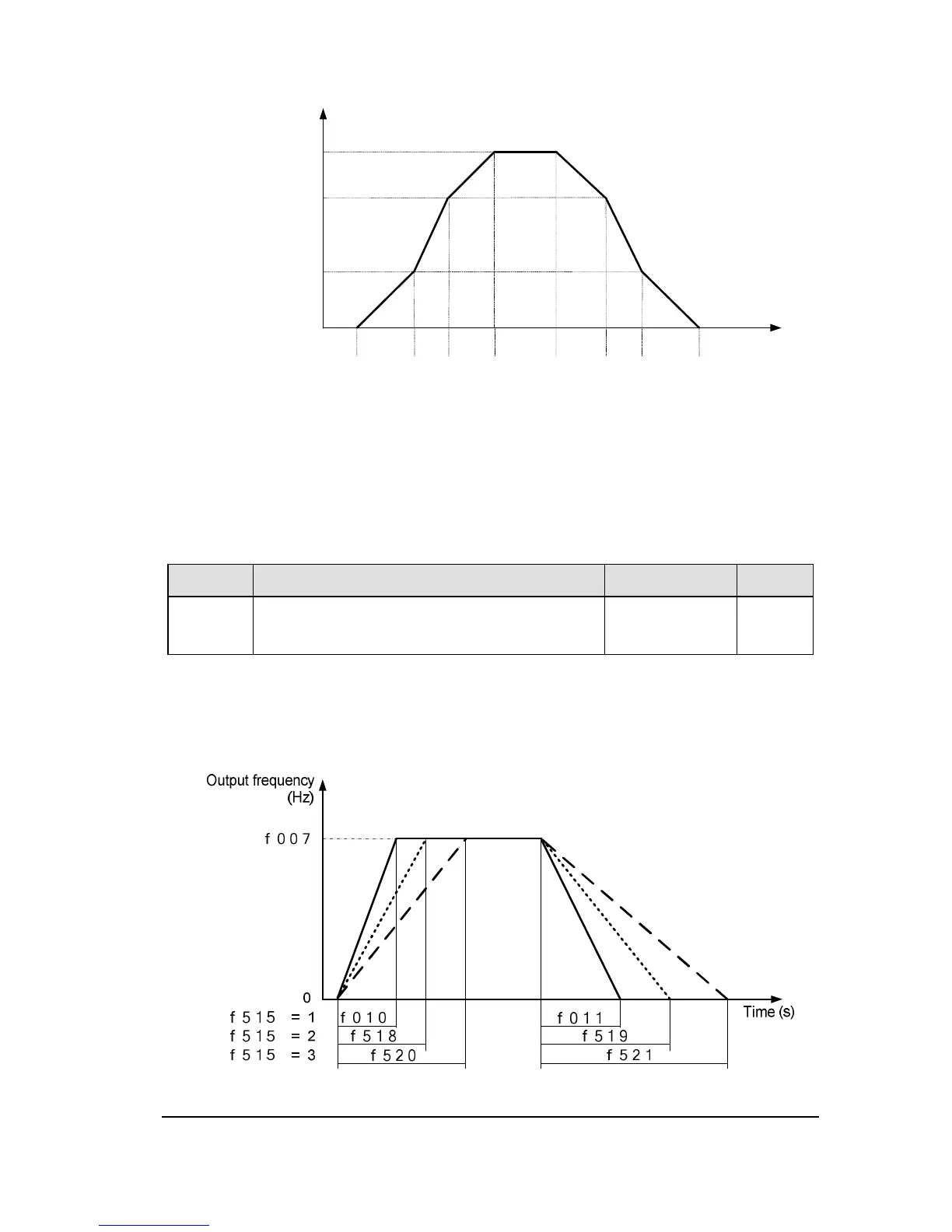

Figure 2.30 Acc/Dec parameters switching automatically
When set f513≠0 and the inverter output frequency increases above (or decreases
below) f513 setting, f518(or f519is effective.
Note: (A) and (F) according to Acc/Dec 1(B) and (E) according to Acc/Dec 2(C) and
(D) according to Acc/Dec 3.
NO. Parameter Name Setting Range
Default
f515
Selecting an acceleration/deceleration
pattern
1~3 1
1: Acc/Dec 1, f010 and f011 are valid.
2: Acc/Dec 2, f518 and f519 and f511 are valid.
3: Acc/Dec 3, f520 and f521 are valid.
Figure 2.31 Acc/Dec parameters description
